To view video archive in the Android mobile client select a required camera in the list and go to the Image Removed tab or select Archive in the corresponding list (depending on the display settings, see Configuring the Android mobile client interface).  Image Added tab.

Note
titleImportant!

To enable viewing the video archive from any Server, the mjpeg video playback format should be selected (see Configuring video). To view the video archive from the Axxon Next Server of version 4.2.0.7697 or higher, the mp4 via ffmpeg video playback format can also be selected.

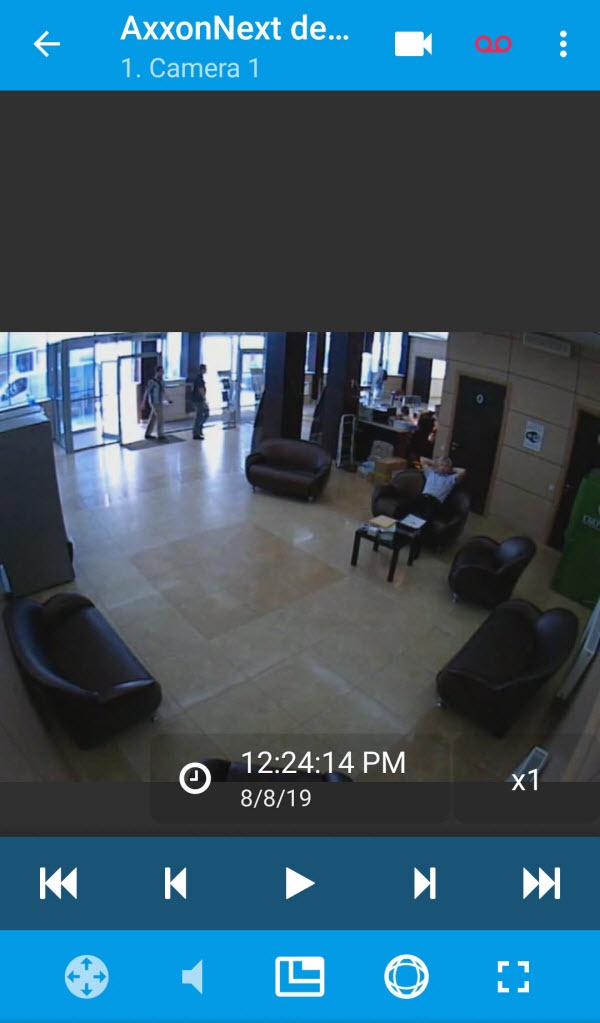

Archive view mode.

Image Modified

To open the video in full screen click the Image Removed Image Added button. To return click the Image Removed Image Added button.

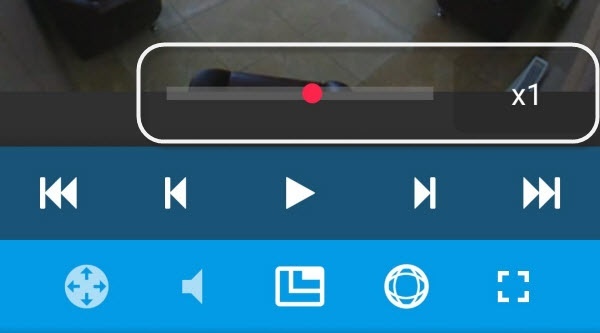

Video playback is controlled using these buttons:

  • Play recording:  Image Removed Image Added;
  • Pause playback:  Image Removed Image Added;
  • Go 10 minutes back  Image Removed Image Added;
  • Go 10 minutes forward Image Removed Image Added;
  • Go to the archive beginning - to the first recorded video  Image Removed Image Added;
  • Go to the archive ending - to the last recorded video Image Removed Image Added.

Playback can be speeded up, slowed down as well as it can be backward/forward.

 Image RemovedImage Added

To play video backwards put the slider to the left from the initial position (х1). The current playback speed is displayed below the slider on the maps. To play video forwards put + before the speed; to play video backwards put - before the speed.

...

To navigate the archive click the time and date form and select the required time.

Image Added

Image Added

Image Added

Image AddedImage Removed
