1. Go to the settings panel of the Access Manager object.

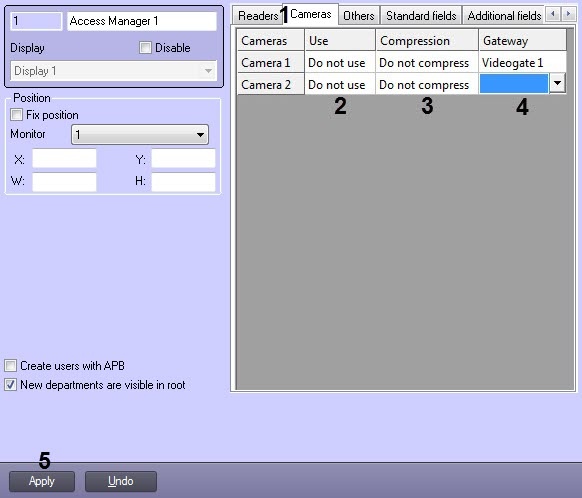

2. Go to the Cameras tab (1).

3. In the Use column set checkboxes close to cameras which are to be used for setting photos to users , from the drop-down list, select the camera stream (2).

   Info
   title Note
   Camera objects are created on the Hardware tab of the System settings dialog window. Creating and configuring Camera is described in the Intellect software package. Installing and Configuring Security System Components Guide document. Current version of this document is available in the documentation repository.




4. In the Compression column, from the drop-down list, select the video stream compression level (3).

5. If video from camera is to be received using videogate, select the required Videogate object from the drop-down list in the Gateway column (34).

   Info
   title Note
   The corresponding Videogate object should be configured for data transferring with this camera. Configuring the Videogate object is described in the Intellect software package. Administrator's guide document. Current version of this document is available in the documentation repository.




6. To save changes click the Apply button (45).

Selecting of available cameras is completed.
