- Go to editing a user (see the Going to user editing section).

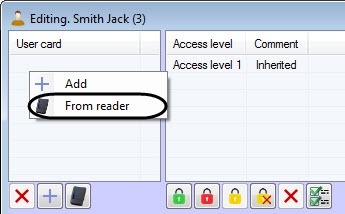

- Click the right mouse button in card selection area.
- Select the From reader item in the opened functional menu.
- The Access card reading window will open.
From the Reader type drop-down list select a control reader which will be used for input of access card number (1).
Info title Note List of accessible control readers is specified while system configuring (see the Selecting Configuring control readers in the Access Manager section).
Click the Start reading button (2). The Access card reading window will be as follows:
Info title Note To cancel access card reading click the Cancel reading button.
- Present access card to the selected reader.

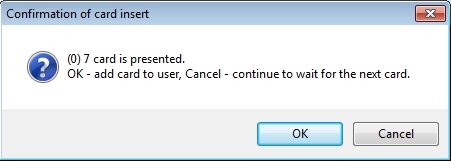

- If confirmation of card input by operator is configured, the Confirmation of card input insert window will display. To assign presented card to a user click OK, to come back to step 12 click Cancel.
See also the Selecting control readers in the Access Manager sectionotherwise click Cancel.
- Then the Access card reading window will be closed and number of presented access card will be added to the list.
| Info | ||
|---|---|---|
| ||
If this card is already given to the current or another user, the corresponding window will display.
|
Input of access card using a control reader is completed.
| Info | ||
|---|---|---|
| ||
To delete a card number from the list click the right mouse button on the card number and select the Delete item in the opened functional menu. |
...
You can also input access card number using a control reader |
...
using the corresponding buttons (see Setting user parameters). |
