Speed-traps are connected to the server via the COM port. Any number of speed-trap devices can be connected to Auto-Intellect, depending on customer needs.

Specialized protocol is used for data exchange with the speed-traps via the COM port. Each Speed-trap uses its individual protocol for data exchange.

Several COM ports should be set up one by one. Each speed-trap device is represented by a separate Speed -traptraps server object  object created and set up in the Hardware tab of the System Settings window.

To set up a COM port for speed-trap connection, do the following:

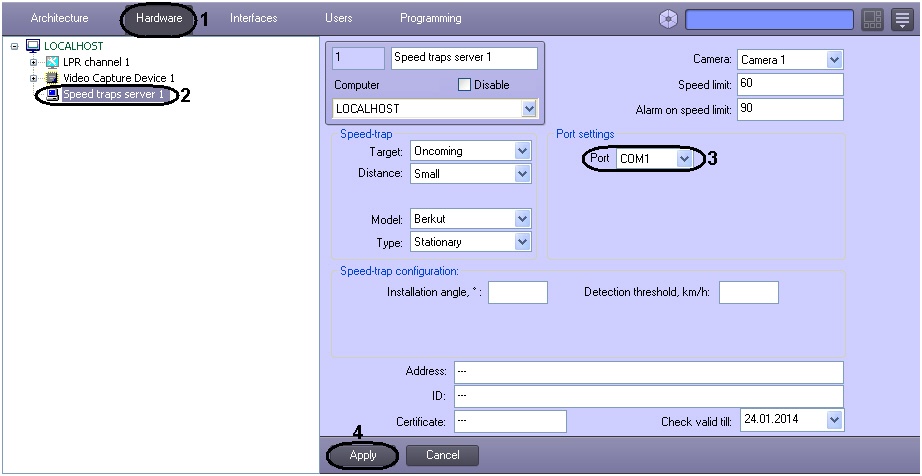

  1. Go to the Speed -traptraps server server object settings panel (2) corresponding to the Radar configurable software module.
  2. In the Port drop-down list, select the COM port to connect the speed-trap (3).
  3. Click Apply (4) to save all changes.

...
