To select the vehicle movement direction and distance, do the following:

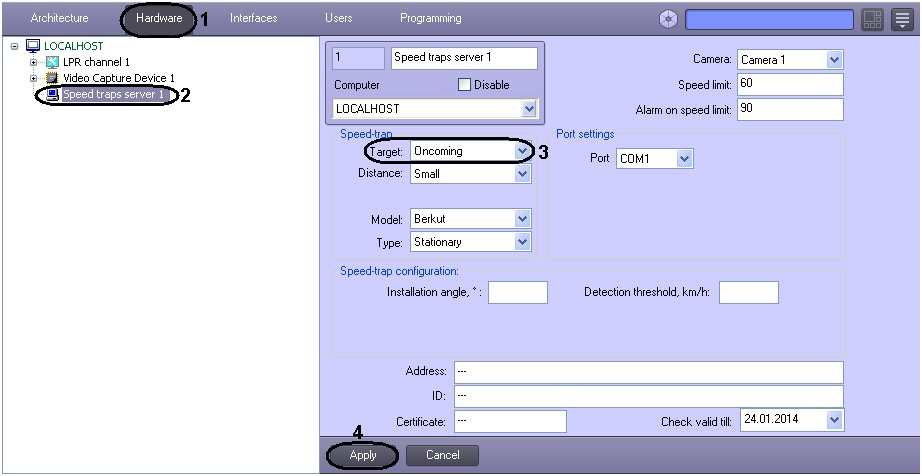

  1. Go to the Speed - traps server object (2) representing the Radar module to be set up.
  2. From the Target drop-down list (3), select the vehicle direction relative to the Radar the Speed-trap device to determine its speed of movement.
    • Automatically - to automatically determine the vehicles speed moving relative to the Radar the Speed-trap device;
    • Oncoming - to determine the vehicles speed moving oncoming to the installed Radar installed Speed-trap device;
    • Passing - to determine the vehicles speed moving from the installed Radar installed Speed-trap device.

  3. When configuring the Auto-URAGAN or CARMEN-Auto software modules, from the Distance drop-down list, select the distance from

    the Radar

    the Speed-trap device to the place where the vehicle speed is determined.

    Info
    titleNote
    • The physical distance from the Speed-trap device to the place where the
    vehicle
    • speed is determined is indicated in the documentation for the Speed-trap device.
    • The value of the Distance parameter is determined experimentally.


  4. Click Apply (4).

The vehicle movement direction and distance is now selected.
