To configure the Radar the Speed-trap device, do the following:

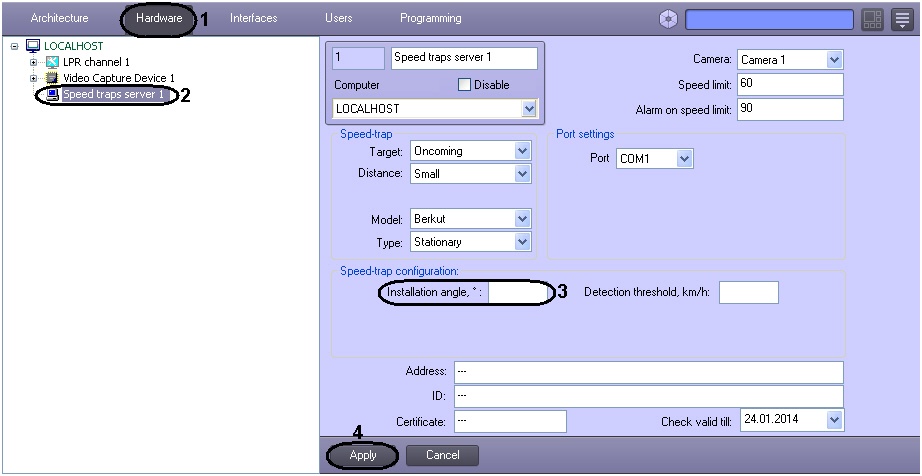

  1. Go to the Speed - traps server object (2) representing the Radar module to be set up.

  2. In the Installation angle, * field (3), enter the inclination angle at which the Radar the Speed-trap device is installed above the traffic lane (see the official documentation for the Radar the Speed-trap device).

    Info
    titleNote.

    Depending on the Radar the Speed-trap device model, the system may ignore this option if it is not applicable to that particular speed-trap model (see the official documentation for the Radar the Speed-trap device).


  3. In the Detection threshold km/h field, enter the minimum vehicle speed determined by the Radar the Speed-trap device. For vehicles moving slower than a given threshold, the speed will not be determined by the Radar the Speed-trap device.
  4. Click Apply (4).

The Radar The Speed-trap device is now set up.
