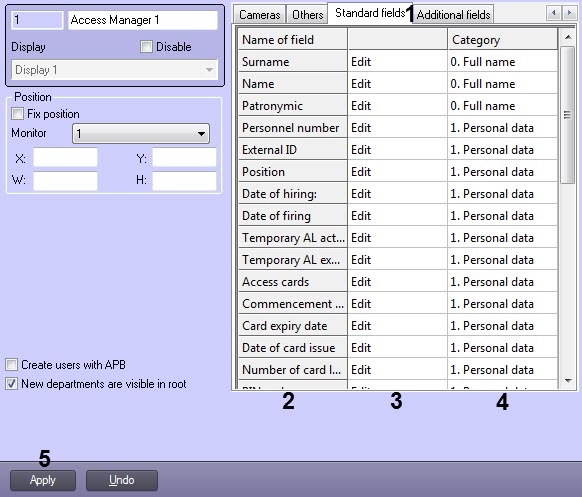

1. Go to the Access manager object settings panel. The object is created under the Display object on the Interfaces tab of the System settings dialog box.

2. Use (1) buttons to go Go to the Standard fields or Additional fields tab (21).

3. Available fields are shown in the Name of field column (32).

   Info
   title Note.
   See Setting user parameters for details on the fields.




4. Set visibility and editability of each field as necessary. For that:

   1. Select one of the following values in the (43) column:

      Value	Description
      Hidden	The field is not displayed in the list while editing or viewing user
      Read only	The field is displayed in the list while editing or viewing user but is not editable
      Edit	The field is displayed in the list while editing or viewing user band is editable. Note. The Card issued by and Access level assigned by fields are always not editable as so as these fields are automatically filled with the name of the Operator assigning/changing card or access level.




   2. Enter name of the group to display the field in the list of user's parameters in the Access Manager interface window in the Category column (54). Category name is arbitrary. If it is not specified, the parameter is shown in Other group.

      Info
      title Note.
      Categories are sorted alphabetically. Use number prefixes in the name to set strict order of sorting.




5. Click Apply to save settings (65).

Configuring the Main department type is completed.
