The Arena program ARENA program module provides interaction of velocimeter and Arena photofixation photo fixation (Arena integrated circuit) and Auto-Intellect PC.

Arena integrated circuit is a monobloc unit containing inside the following devices:

...

To set up the Arena program ARENA program module, the following data about the Arena integrated circuit are necessary:

1. IP-address of the Arena computer with installed and set up ftp-server;
2. Port for connection to the ftp-server;
3. User name and password for connecting to the ftp-server.

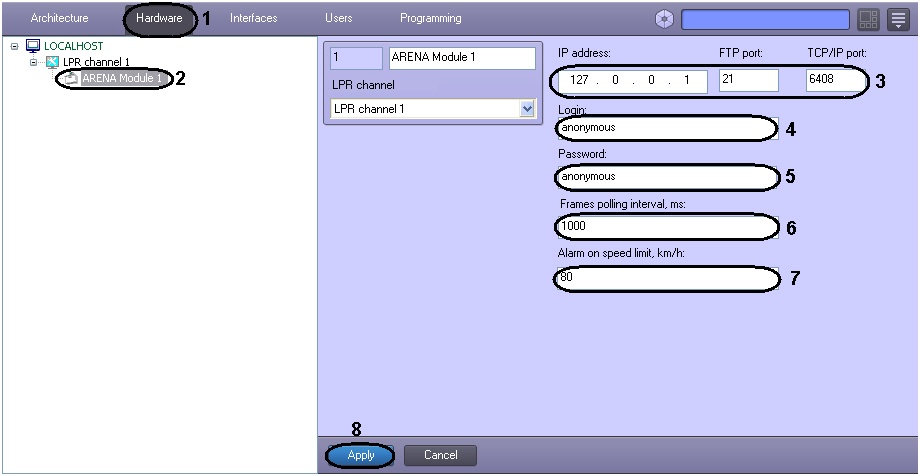

Setting up Arena program ARENA program module is performed in the following way:

1. Go to the Arena module ARENA module object settings panel, which is created on the basis of the LPR Channelchannel object (2).

2. In the IP address field enter the IP-address of the Arena computer with installed ftp-server (3).
3. In the FTP Port field enter the port for connection to the ftp-server (3). Port 21 is used by default.
4. In the TCP/IP Port field enter the TCP/IP port for connection to the ftp-server (3). Port 6008 is used by default.
5. In the Login (4) and Password (5) fields enter the user name and password for connection to this ftp-server.
6. In the Frames polling interval, ms field enter the time between two one by one requires of Auto-Intellect PC for downloading the photos from the Arena integrated circuit (6).
7. In the Alarm on speed limit, km/h field enter the maximum available vehicle speed in km/h (7). In case, when the vehicle moves at a speed above the maximum available vehicle speed, the system generates the report about the excessive speed.
8. Click Apply (8).

Setting up the Arena module ARENA module is completed.
