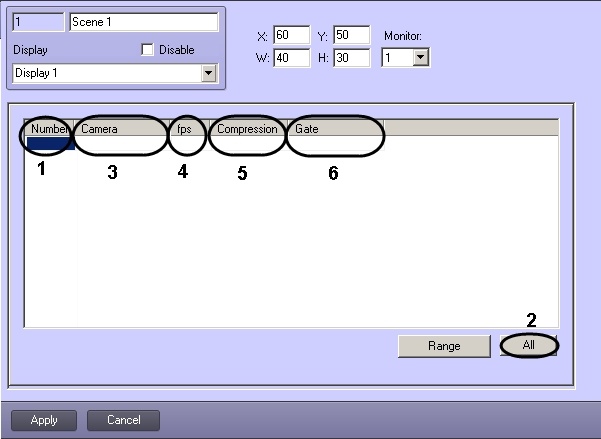

1. Go to the settings panel of the Scene object.

2. Select the number of required camera from the Number dropdown list (1).


   Info
   title Note.
   To select all the cameras, registered in the system, click the All button (2).




3. The name of selected camera will automatically be displayed in the Camera column (3)

4. If a signal is to be thinnedgroomed, the required fps is to be selected from the fps dropdown list (4).

   Info
   title Note.
   It’s not recommended to change fps value while using H.264 codec




5. If a compression level of video signal is to be changed, the required compression level is to be selected from the Compression dropdown list (5). The compression level increases from 0 (no compression) to 5 (maximum compression).
6. If the archive from the selected camera is to be received via the Gate object, then select the name of this object from the Gate dropdown list (6)

7. Repeat steps 2-6 for all the required cameras.

   Info
   title Note.
   To add a new camera, go to the last line in the selected cameras list and press "down" on the keyboard.




8. Click the Apply button to save the changes.

...

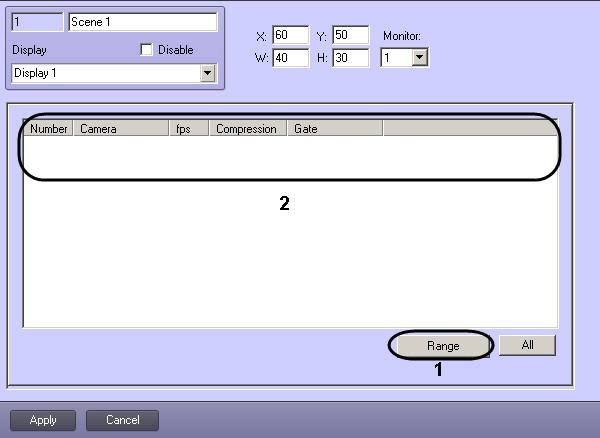

1. Go to the settings panel  for the Scene object and click the Range button (1)


2. The Add/edit cameras dialog box will open as a result.

   Info
   title Note.
   The Add/edit cameras dialog box is described in the Selecting and configuring video cameras as a packagein bulk section.




3. Cameras settings, set in the Add/edit cameras dialog box will be displayed on the settings panel of the Scene object (2).
4. Click the Apply button to save the changes.

...
