1. Click anywhere on the local Client's monitor layout diagram (see the Video wall management panel section).

   Info
   title Note.
   Client monitor management falls under user rights (see the Creating and configuring roles section).

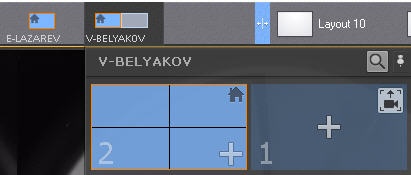

   Monitors' expanded views open.




   Info
   title Note
   Each monitor has its unique ID number. To display the ID number of a monitor, click .




   The thumbnails may appear differently, depending on the status of the monitors in Axxon Next.

   Thumbnail	Monitor status
   	Active main monitor
   	Inactive main monitor
   	Unassigned additional monitor
   	Inactive additional monitor (video wall)
   	Active additional monitor (video wall)




   Info
   title Note.
   The image of the monitors shows the currently open layout.




2. To display the layout on the monitor, you have to:

   1. Click the + button on the non-distributed additional video monitor's thumbnail. The additional monitor becomes active, and the layout of the main monitor is duplicated to it.

   2. Set up a layout on an additional monitor (see the Configuring layouts section). You can configure the layout of the additional monitor through the main monitor (the additional monitor must be active). Changes affect only the additional monitor; the layout of the main monitor is not changed.

   3. Click the main monitor's thumbnail. The additional monitor becomes inactive, and the original layout is displayed on the main monitor. If the additional monitor becomes inactive, editing of the layout does not affect it.

3. To display a currently selected camera on the main monitor, do the following:

   1. Click the  button on the non-distributed additional video monitor.

   2. Selecting a camera on the primary monitor makes its video feed visible on the additional monitor.

...
