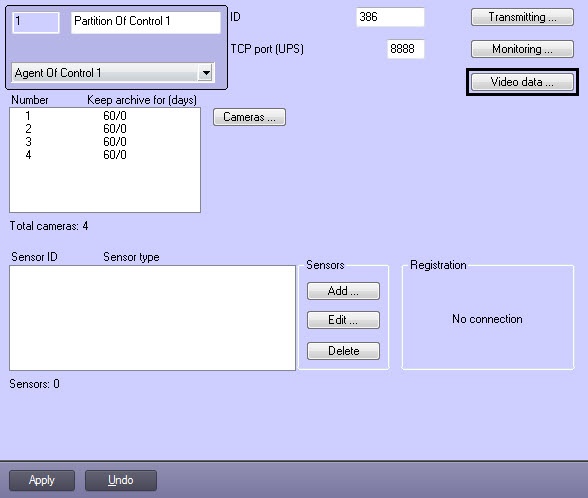

1. Go to the settings panel of the Partition of Control object.

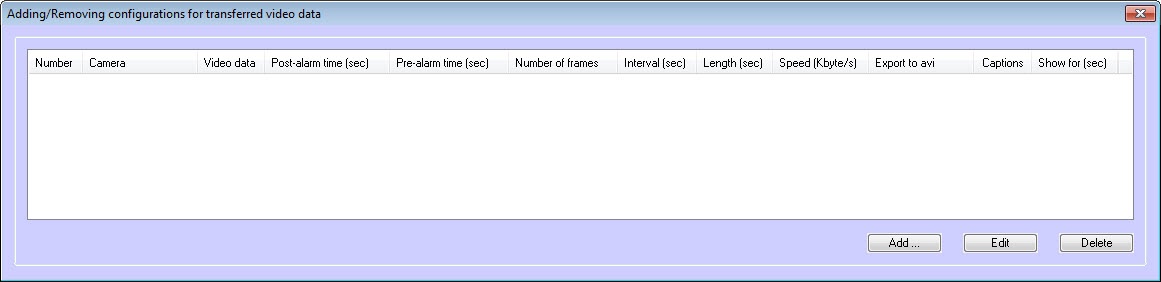

2. Click the Video data… button. The Adding/Removing configurations for transferred video data box appears.
   Image Modified

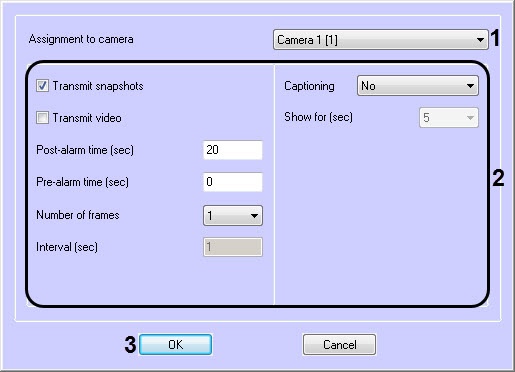

3. To add a new video data transmission configuration click the Add… button. The configuration settings box appears.

4. In the Assignment to camera dropdown list select the Camera object that will be used for getting video data (1).
5. Configure the data transmission parameters (2). The data transmission parameters are the same as those for video data transmitted along with sensor alarms (see Configuring sensors section, steps 7-17).
6. Click the OK button (3). The created configuration is added to the list.
7. Repeat steps 3-6 for all video data transmission configurations.
8. Click the OK button.
9. Click the Apply button.

...
