To add MorphoAccess SIGMA Lite fingerprints in the Access Manager module

...

, do the following:

1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
2. Select the (MorphoLite) MorphoAccess SIGMA Lite extension that corresponds to the MorphoAccess SIGMA Lite terminal.
3. Open the Access Manager window (see Starting and stopping the Access Manager module).
4. Start editing the required user (see Going to user editing).

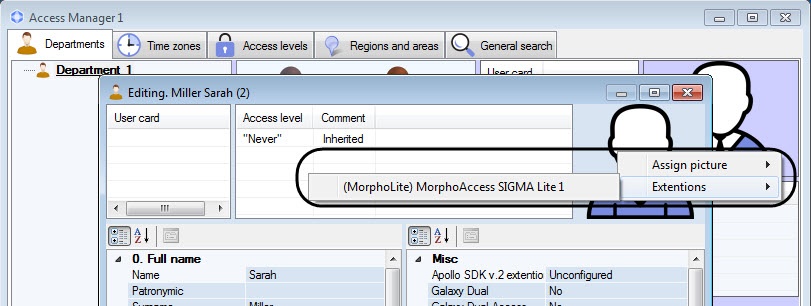

5. Right-click the user's picture and select the Extensions item from the menu.
   Image Removed

6. Select (MorphoLite) MorphoAccess SIGMA Lite to use this controller.

   Info
   title Note
   In order for the required controller to be displayed in the Extensions list, it is necessary to pre-select it during the Access Manager module configuration - see Selecting control readers in the Access Manager.

   As a result, the

   The

   Operations on biometrics dialog box will open. To add a new fingerprint, click the Add fingerprints button.
   Image Modified

   Info
   title Note
   To delete all fingerprint templates, click the Delete all fingerprints button. This button is active if there are any previously added fingerprint templates.

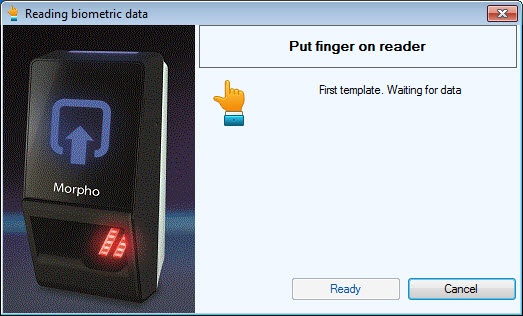

7. To add a fingerprint template, click the Add fingerprints button. The Reading biometric data dialog box will open.
   Image Modified
8. Put the first Place your finger on the controller three times and wait for the fingerprint scan to complete.
   Image Removed

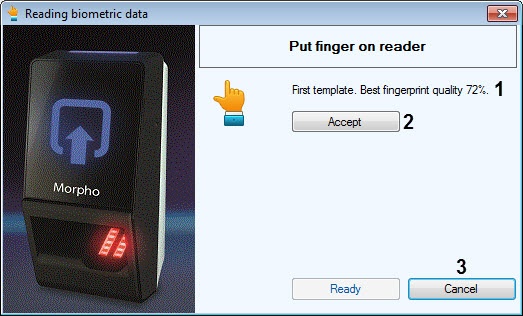

   The  The quality of the first fingerprint will be displayed in the area (1). Click Accept (2) to continue scanning two more fingers.Image Added

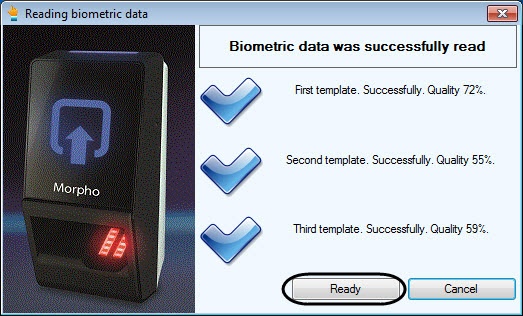

9. In the same way, scan two more different fingers. To complete the fingerprint template creation, click the Ready button. As a result, the Reading biometric data dialog box will close.


   Info
   title Note
   It is possibile to add only two more fingerprints. After you complete scanning two fingerprints, click Ready.

   In the Operations on biometrics dialog box, click the Ready button (1) to complete the fingerprint template creation.
   Image Removed

   InfotitleNote

   To delete the created fingerprint template, click the Delete all fingerprints button (2).

   To cancel the fingerprint template creation and close the Operations on biometrics dialog box, click the Cancel button (3).

10. Save the changes in the Access Manager user editor to add the fingerprint template to the user account.

Creating the fingerprint template in the Access Manager module using the MorphoAccess SIGMA Lite controller is fingerprint template is complete.
