The SIP-device is configured on device of the Intellect's SIP - client is configured as follows:

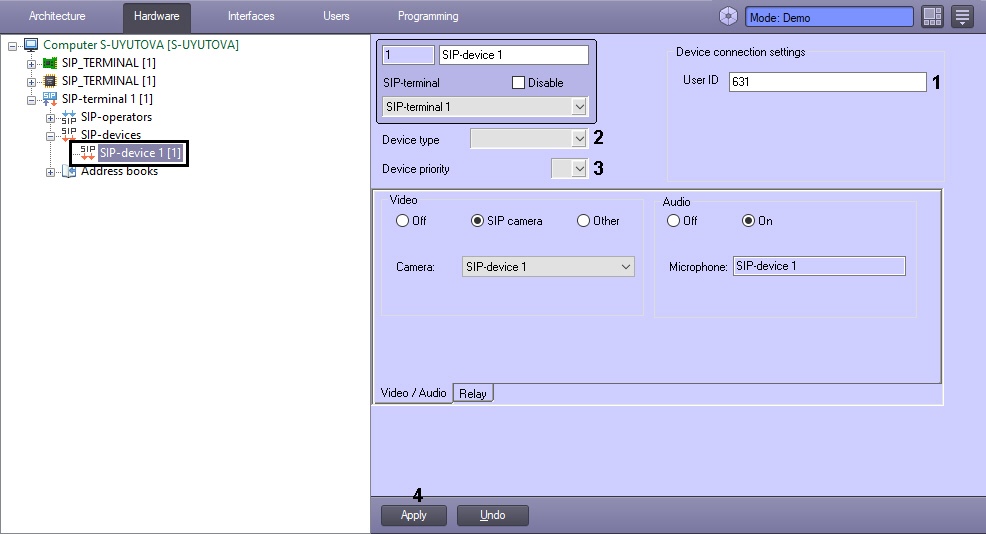

  1. Create a SIP-device object based on the SIP-terminal object on the Hardware tab of the System Settings dialog box (1).
  2. In the User ID field (21), specify the SIP-device identification number, i.e. the number to call it.
  3. From the Device type drop-down list (2), select the icon type used to display the device on the Map.
  4. From the Device priority drop-down list (3), select the priority of calls from this device when displayed on the SIP panel (3). If the field is left blank, the priority is considered minimal. The larger The lower the number, the higher the priority and, hence, the higher the call is displayed in the list. If the field is left blank, the priority is considered minimal. Calls from devices with the same priority are sorted by time depending on the New calls to end setting of the SIP panel interface object (see Configuring the SIP Panel interface object)will be sorted by the time of the call.

  5. Click Apply (4).

Configuration of the SIP-device on the Intellect SIP-client is complete.

Image Removed

  1. Info
    titleNote

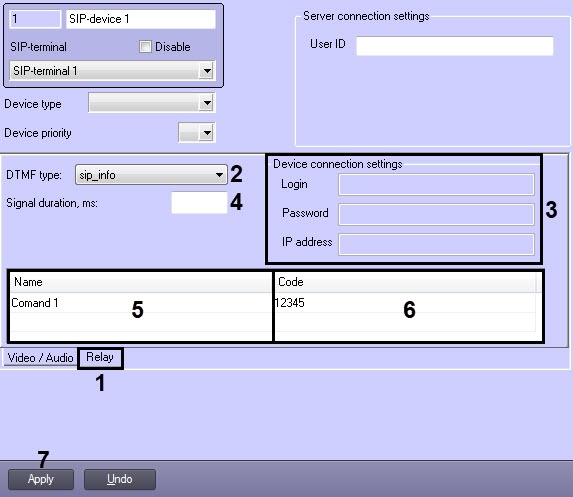

    The Video / Audio and Relay tabs are intended for configuring a SIP-device only for the SIP server terminal type (see Configuring SIP-devices of the Intellect's SIP server).


The SIP-device of the Intellect's SIP client is now configured.Image Removed
