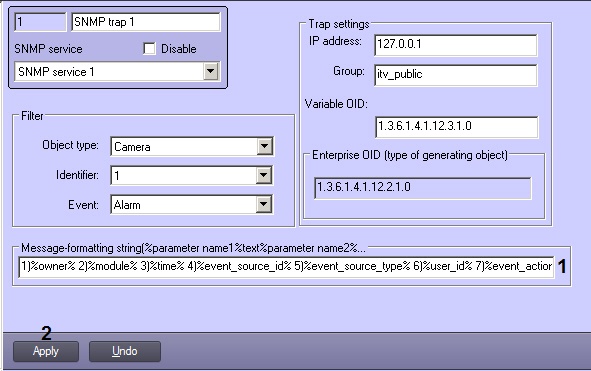

1. Go to the settings panel of SNMP trap object.


2. Enter in the field Message’s format string (%parameter’s name1%text% parameter’s name2%... parameters’names in the required sequence. Description of event’s main parameters is given in the table.

   Parameter’s name	Description of parameter	Availability in the message
   %event_action%	Event, registered in the system	Is determined by object’s type, for which the event may be registered
   %event_source_id%	Object’s identification number, for which the event has been registered
   %event_source_type%	Object’s type, for which the event has been registered
   %owner%	Computer name, from which the message has been received	Obligatory message’s parameters
   % time %%time%	Time of event’s creation
   %user_id%	Computer’s user identification number,   from which the message has been received	Optional message’s parameters
   %module%	Module’s name, for which the event has been registered




   Info
   title Note.
   In case when message’s format string is not set, SNMP message is formed in accordance with the pattern  %event_action%,%event_source_id%,%event_source_type%, %owner%,%user_id%,%module%.




3. To save the changes click Apply button.

...

Example of SNMP-message, formed in accordance with the pattern pattern "1)%owner% 2)%module% 3)%time% 4)% event%event_source_id % id% 5)% event%event_source_type % type% 6)% user%user_id % id% 7)% event_action % %event_action%" is exemplified in the figure below.

...
