  1. Go to the Hardware tab of the System settings dialog box.

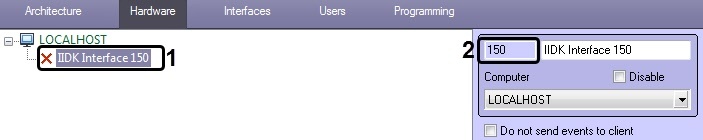

  2. Create the IIDK Interface object (1). Set the identifier of the IIDK Interface object (2).

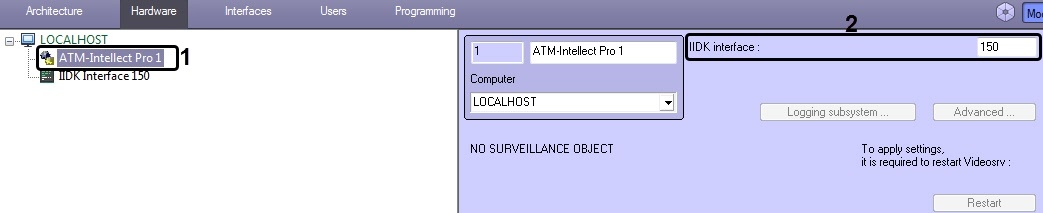

  3. Create the ATM-Intellect Pro object based on the Computer object (1). On the settings panel of this object, in the IIDK interface field (2), enter the identifier of the previously created IIDK Interface object.

  4. Create the required number of child Surveillance Object objects on the basis of the ATM-Intellect Pro object.
    Image Modified

    Info
    titleNote

    The Surveillance Object object name cannot contain the following characters: underscore "_", backslash "\", angle brackets ">" and "<", single quote "'".


You also need to create Video Capture Device, Camera and Sensor objects corresponding to the connected equipment. Creation and configuration of these objects is described in the INTELLECT Software Package. Installing and configuring security system components.

Objects creation is completed.
