- If there is a QR-code containing the Server configuration received from another app (see The Share feature), click the
button to add a new Server automatically using the QR-code. The viewing window will be opened which you need to point at the QR-code. As the result of reading the QR-code, the Server will be automatically added and displayed in the local servers group. To add a new Server manually, click the

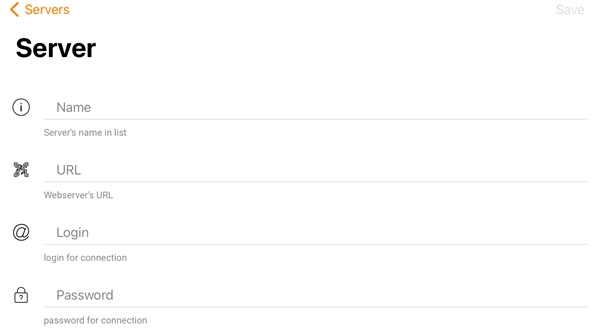

button. In the displayed window, specify the following parameters:
Enter the Server name in the Name field.
Enter the Server URL address in the URL field in the format <Server IP-Address>:<Port>/<Prefix>.
Note title Attention! The Server URL address is case-sensitive. It is necessary to enter the URL-address with exactly the same case of letters that is specified in the settings of the corresponding Web-server.
Info title Примечание The URL examples with standard settings for Axxon Next and Intellect Servers.
Axxon Next (3.6 and earlier): 192.168.0.10:8000/asip-api
Axxon Next 4: 192.168.0.10:80
Intellect: 192.168.0.10:8085/web2
Enter the user name and password for connection in the Login and Password fields correspondingly.
Info title Note When connecting to the Intellect Server, you can use the username and password with the Windows authorization rights used in Intellect (see Assigning the rights and password to operators for authorization in the Intellect). In this case the username is to be specified in the following way:
\\WorkPC\user, where WorkPC is the computer or domain name, and user is the user’s name. Take the letter case into account when specifying the username and password.
Note title Attention! You cannot connect to Intellect and Axxon Next Servers directly using an LDAP user account.
After entering the data, the Test connection button will become available. It , which is used for testing the connection to the Server. If the Server is running, the connection parameters are entered correctly and the device has a stable Internet connection, the Successfully connected message will appear. Otherwise, it is necessary to ensure that the actions listed above are performed, and repeat the connection testcheck the correctness of the entered data.
Info title Note To perform a basic check of the Web-server connection and operability, go to the Server URL address on your mobile device browser.
Click the Save button to save the Server configuration.
...
