When connected to the Axxon Next Server, on the Status tab, you can view the audit log for all Server domains. To do this, on this tab, click the OPEN button in the Audit item.

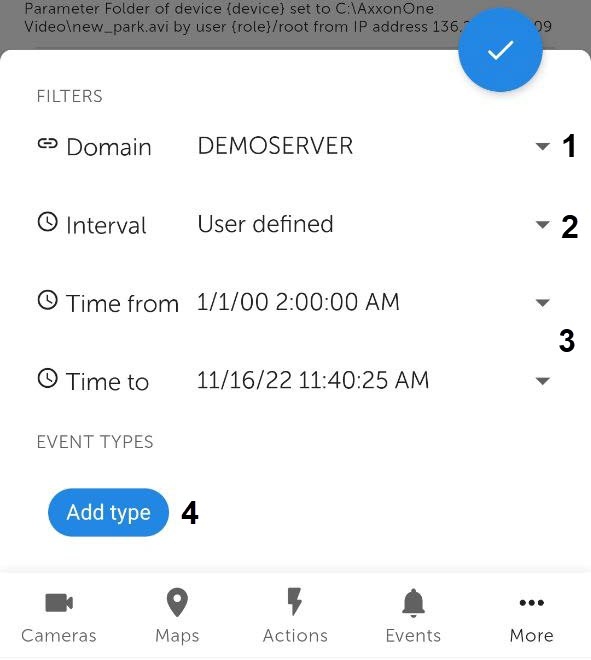

To filter the Server audit events, click the  button:

  1. Select the domain of the Axxon Next Server (1) to display its events.
  2. Select one of the preset time intervals to display the corresponding events (2). To set the custom time interval, select the User defined value.
  3. If the User defined time interval is selected, then in the Time from and Time to parameters, specify the required time interval to display the corresponding events (3).
  4. Select the event type by clicking the Add type button (4).
  5. To apply the filter, click the Image Modified button. As a result, a list of events corresponding to the specified filter will be displayed.
