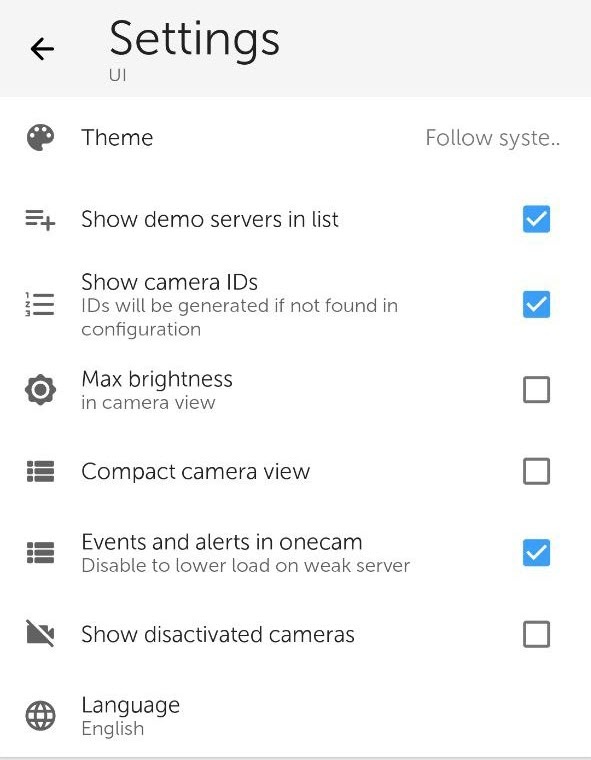

The mobile client interface is configured in the UI section as follows:

Image Modified

1. In the Theme parameter (1)parameter, select the color skin of the app interface:
   • Follow system — the theme will depending on the theme of Android-device.
   • Light theme — the light colors interface.
   • Dark theme — the dark colors interface.
   Select the tile size in multicam (2): Tiny, Small, Normal or Large
   • .
   info

2. title	Note

   If the live video playback in a multicam tile is enabled, then when you select the Tiny tile size, the app will ask you to disable the live video playback to optimize the performance.

   Set the Show demo servers in list checkbox (3) to checkbox to display the demo Servers in the servers list.

3. Set the Show camera ids checkbox (4) to checkbox to display the camera IDs.

   Info
   title Note
   For the Axxon Next Server, the displayed camera IDs are generated regardless of the Server configuration.




4. Set the Fisheye image detector checkbox (5) if checkbox if it is necessary to recognize fish-eye cameras and hide the button for switching to the virtual telemetry mode for all non-fish-eye cameras.

   Info
   title Note
   If this parameter is enabled, then the video from the fish-eye camera will be displayed directly in the virtual telemetry mode.




5. Set the Max brightness checkbox (6) if it checkbox if it is necessary to enable maximum screen brightness when viewing live or archived video.Set the Fingerprint login checkbox (7) if it is necessary to require fingerprint verification to login to the application. Restart the application to apply the setting. A fingerprint is requested only in case of an app cold startup (via an icon, push notification or camera widget). If the app was minimized and was not unloaded from memory by the Android system, then when the app is restarted, the fingerprint will not be requested.

   Info
   title Note
   This parameter is available only for Android devices with a built-in fingerprint reader. Also, the fingerprint lock should be activated on Android device. Otherwise, there will be no such parameter.

6. Set the Events and alerts in onecam checkbox (8) if it checkbox if it is necessary to display events and alarms on the camera screen (see Viewing the camera info in AxxonNet client on Android OS). It is recommended to disable this parameter if the Server does not have enough computing resources.

...
