1. Open the Map Editor utility for the required layer (see Creating the layers of the interactive map).
2. Add a Camera object icon on a layer (see Attaching objects to the layers of interactive map) or select an already attached Camera object.

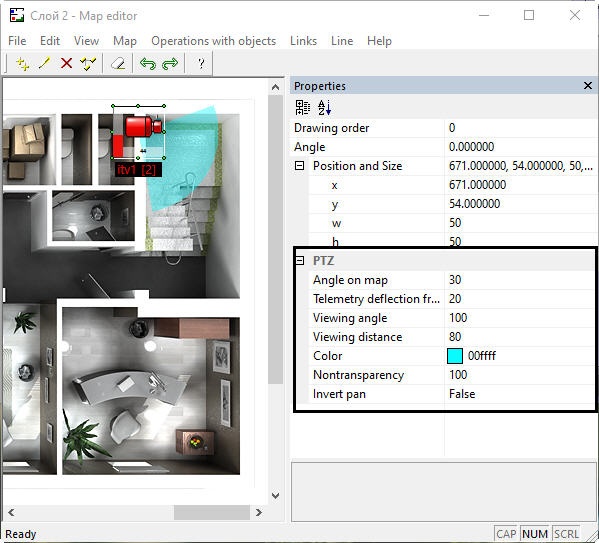

3. Open the Properties panel if it is not automatically displayed (see Editing object properties using the Properties panel).
   Image Modified
4. On the Properties panel in the PTZ group, set the viewing angle parameters in the following way:
   1. Angle on map - the direction of the initial vector on the map in degrees.
   2. Telemetry deflection from zero is the real camera deflection from the zero position at the moment of setting up the parameters.
   3. Viewing angle - the size of the camera viewing sector in degrees.
   4. Viewing distance is the radius of the camera viewing sector.
   5. Color - the color of the displayed camera viewing sector.
   6. Nontransparency - the opacity of the displayed camera viewing sector.
   7. Invert pan – invert the panning direction of the camera viewing sector in case if camera sends inverted pan direction (e.g. camera says it turns counter-clockwise wlile physically turning clockwise).
5. Close the Map Editor.
6. Click the Apply button in the settings panel of the Layer object.

...
