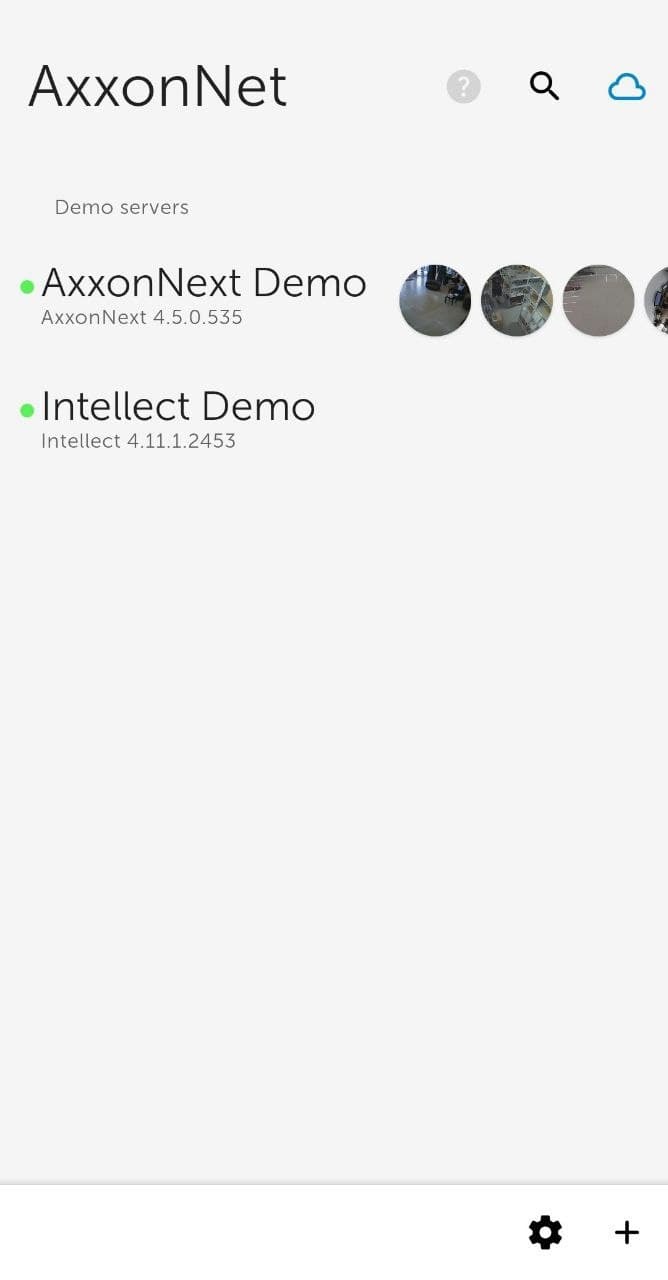

As a result, the added Server will be displayed in the Local servers group (see Servers list screen in AxxonNet client on Android OS).
Before connecting to the Server, configure the Web-server in the appropriate software package (see Configuring the web server for Axxon Next, see Configuring the Web-server module for Intellect).
Add a new server as follows:
...
Click the
button.
...
Or set the Server connection parameters manually:
...
Enter the Server URL address in the form of <Server IP address>:<Port>/<Prefix> (2).
| Note | ||
|---|---|---|
| ||
The URL server address is case-sensitive. It is necessary to enter the URL address with exactly the case of letters that is specified in the settings of the corresponding Web-server. |
| Info | ||
|---|---|---|
| ||
Example URLs with standard Server settings for Axxon Next and Intellect: Axxon Next (3.6 and earlier): 192.168.0.10:8000/asip-api Axxon Next 4: 192.168.0.10:80 Intellect: 192.168.0.10:8085/web2 |
Enter the user name and password for connecting (3, 4).
| Info | ||
|---|---|---|
| ||
When you connect to Intellect Server, you can use the username and password of the user with Windows authorization rights in Intellect (see Assigning the rights and password to operators for authorization in the Intellect), in this case the username is to be specified as follows: \\WorkPC\user where WorkPC is the computer or domain name and user is the username. The username and password are case-sensitive. |
| Note | ||
|---|---|---|
| ||
You cannot connect to Intellect and Axxon Next Servers directly using an LDAP user account. |
To check the correctness of the entered data, click the Check connection button (5).
| Info | ||
|---|---|---|
| ||
To perform a basic check of the web server connection and operability, go to the Server's URL address in your mobile browser. |
...
As a result, the added Server will be displayed in the Local servers group (see Servers list screen in AxxonNet client on Android OS).
