The Monitoring software is installed as a part of the Intellect software. Information about compatibility of the Intellect software versions and Monitoring is presented in the General information about product releases and versions compatibility section.

To install Monitoring software in the Server of Control configuration, do the following:

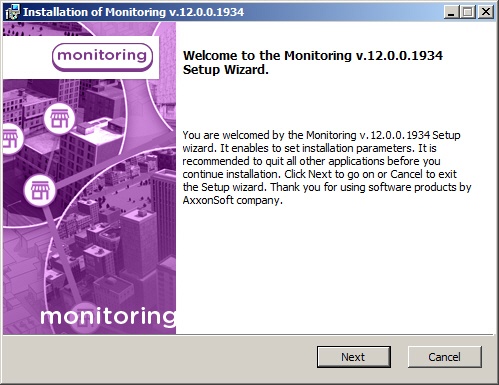

1. In the root directory of the distribution package, run the setup.exe executable file.
2. To continue the installation process, click Next.
   Image Added

Installation of Server of Control sowtwareis performed in the following sequence:

1. From the installation kit, start the executable file setup.exe. A dialog box appears, informing of the beginning of installation. A prompt to start installation then appears. Click the Next button.
   Image Removed

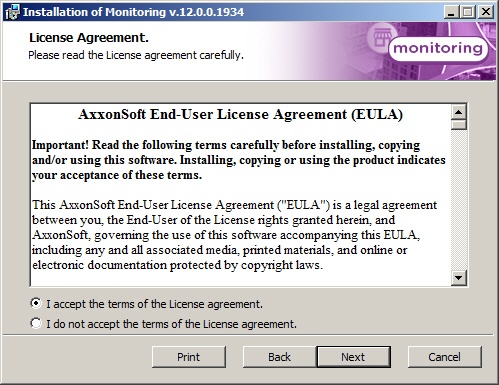

2. The License Agreement window presents the terms of the end user license agreement. Select Read the terms of the license agreement carefully. Then set the radio button to I accept the terms of the License Agreementagreement and click the  Next button.

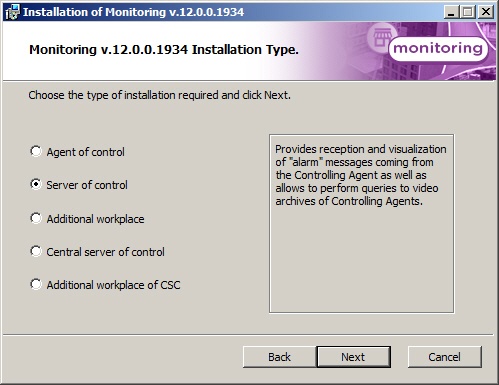

3. Set the Server of Control installation type . Click and click Next.

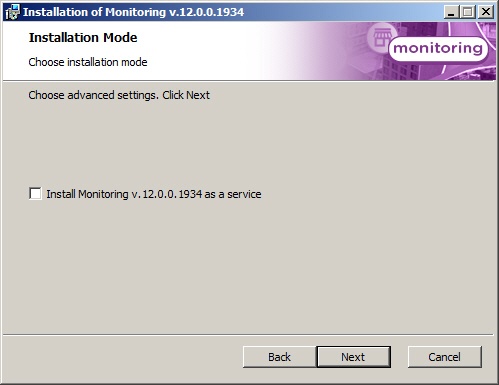

4. In the window that appears, select the most appropriate installation type. If Intellect software is installed as a service, and it is necessary that Server of Control is also installed as a service, select then set the Install Monitoring as a service check box checkbox and click Next.

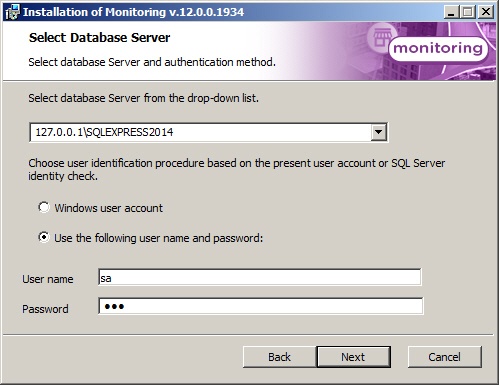

5. A dialog box to configure database connection will be displayed. Select the database server name and set up the connection parameters.
   Click MS SQL Server and specify the authorization parameters for connection. For details, see Installation of INTELLECT™ software as a Server/Remote administrator workplace. To continue the installation process, click Next.

   Info
   title Note.
   In the the Select database Server from the drop-down list field specify the " 127.0.0.1"  value instead of computer name or "(local)" value, e.g. "127.0.0.1\SQLEXPRESS". Otherwise Server of Control will lose connection with its local database when the network cable is disconnected.

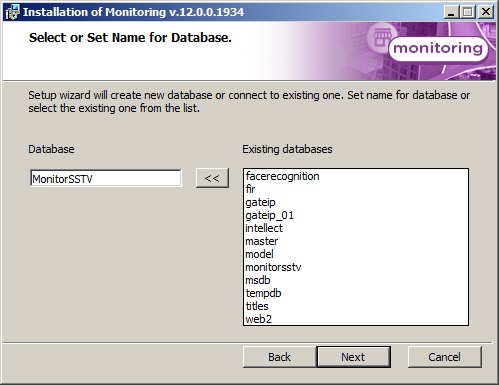

6. In the Database field specify the name of the database or select it on the right part of the window in the list of databases, which are created in the server, and click <<.
   Click NextThen click Next.

   Info
   title Note.
   By default, the name of the database is "MonitorSSTV" and its files will be stored in the SQL Server folder.

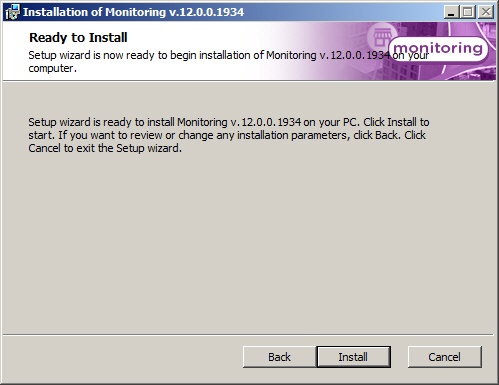

7. Click Install on the next dialog box.
   Image Removed

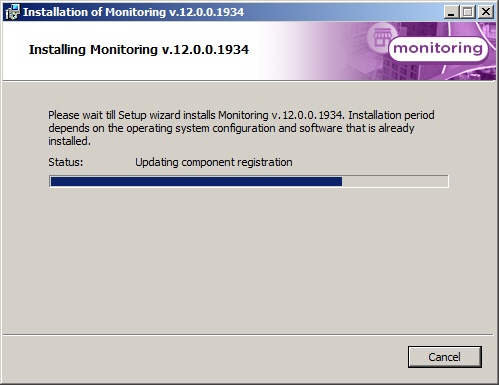

8. The installation process is launched.
   Image Removed

9. to start the installation process.
   Image Added

10. As a result, the necessary components of the Monitoring software package will be copied to hard drive of your computer.
    Image Added

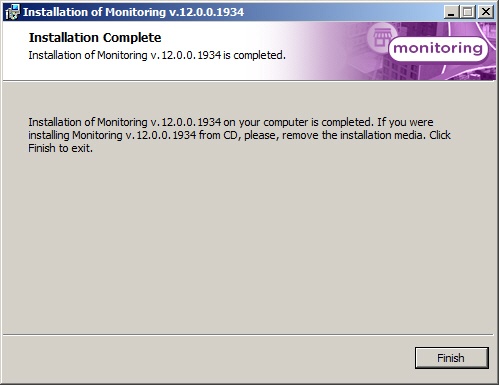

11. After all software components are successfully copied on your hard drive, the message about the completion of the installation process will be displayed. Click When installation is complete, a wizard page appears with a message about successful installation.
    Click Finish.


Installation of Server of Control is complete.
