To view all received video data, select the Video data item in the object context menu.
| Info | ||
|---|---|---|
| ||
Depending on By selecting the appropriate Monitoring software settings (see Monitoring. Administrator's Guide) the received video frames and video clips Configuring reaction to snapshots and videos), snapshots and videos can be automatically opened immediately after they have been as soon as they are received. |

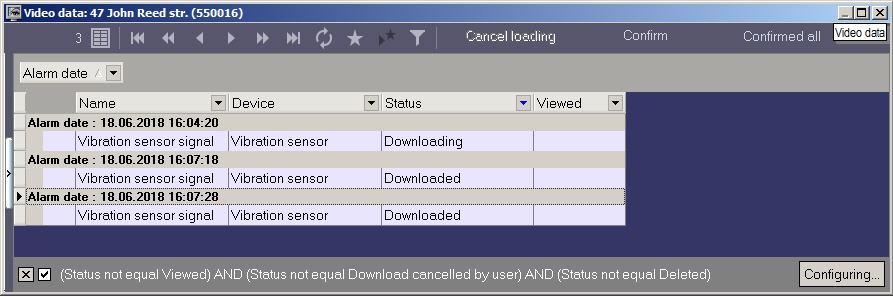

The Video data dialog box opens. The information on video data is displayed in this dialog box. This dialog box also provides function to cancel data downloading, if it is has not been completed yet, using he Cancel loading button.
To force an update of the information in the Video data dialog box, click the
.
...
When the View item is selected, a video frame is opened with the <Intellect installation directory>\Vhost\SYSTEM\JPEGViewer.exe utility, and a video clip is opened with Axxon Player utility. Video data status changes to "Data viewed" and in the Viewed column the date of viewing is displayed.

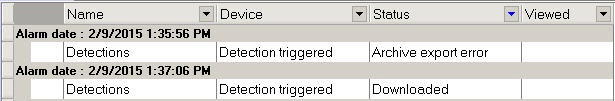

If video data export fails, then there is the Archive export error message in the Status column.
To cancel download of "Downloading" or "Archive export error" data, click Cancel loading. After that, the status of the video data becomes "Download cancelled by user" and it is not displayed in the list if default filter is enabled (see Setting video data list filter).

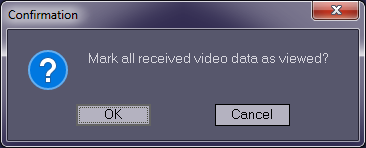

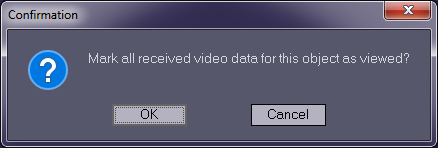

To mark all object's video data as viewed, click Confirm. To mark all video data of all objects as viewed, click Confirmed all. A dialog box for action confirmation for one or all objects is shown. Click Yes OK to confirm.
As a result, the name of the object stops being of yellow color. Status of all video data changes as follows and they are not displayed in the list of video data if the default filter is enabled (see Setting video data list filter).
- "Downloaded" to "Viewed"
- "Archive export error" to "Download cancelled by user"
