To view all received video data, select the Video data item in the object context menu.

The Video data dialog box opens. The information on video data is displayed in this dialog box. This dialog box also provides function to cancel data downloading, if it is has not been completed yet, using he Cancel loading button.

...

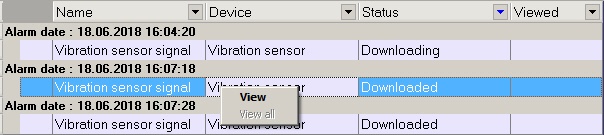

To open the loaded video data right-click in the row corresponding to required data and select the View item. If the data download is not completed, this item is unactiveinactive.

When the View item is selected, a video frame is opened with the <Intellect installation directory>\Vhost\SYSTEM\JPEGViewer.exe utility, and a video clip is opened with Axxon Player utility. Video data status changes to "Data viewed" and  and in the Viewed column the date of viewing is displayed.

If video data export fails, then there is the Archive export error message in the Status column.

To cancel download of "Downloading" or "Archive export error" data  data click Cancel loading. After that, the status of the video data becomes "Download cancelled by user" and  and it is not displayed in the list if default filter is enabled (see Setting up video data list filter).

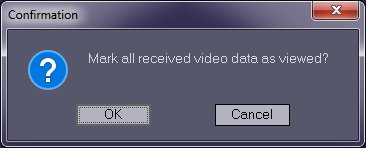

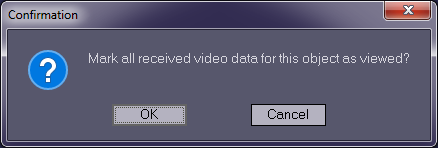

To mark all object's video data as viewed, click Confirm. To mark all video data of all objects as viewed, click Confirmed all. A dialog box for action confirmation for one or all objects is shown. Click Yes OK to confirm.

As a result, the name of the object stops being of yellow color. Status of all video data changes as follows and they are not displayed in the list of video data if the default filter is enabled (see Setting up video data list filter).

• "Downloaded" to "Viewed"
• "Archive export error" to "Download cancelled by user"
