It is possible to open the layout with the specified camera.

The View camera macro uses the following algorithm:

1. Searches for the layouts available to the current user that contain the selected camera.
2. Selects the layout with the minimum number of cells to display the selected camera.
3. If the required layout does not exist, creates a new layout with the selected camera.
4. Switches to the selected layout or the created layout.
5. Performs the specified action

...

1. .

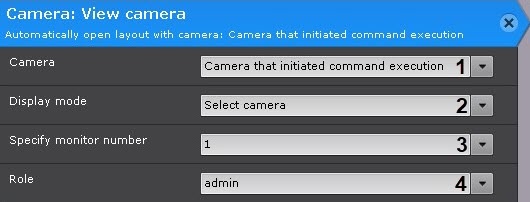

To configure the command, do as follows View camera macro, it is necessary:

1. Select a the camera to be displayed (1) . An implicit selection of a video camera is also allowed - or Camera that initiated command execution .

   Image Removed

   For the Go to archive mode mode (see step 2), you (see Configuring filters for event-driven macros). You can select a group of cameras . In this case, if the launch of the macro command was caused by the triggering of a sensor or relay (see for the Switch to archive mode (see i. 2).


   Note
   title Attention!
   If the macro was triggered by a sensor or a relay (see Configuring filters for event-driven macros) that are not associated with

   any video

   the camera, the action will not be

   launched

   triggered.

   Image Added

2. Select the display mode (2).

   Display mode	Description
   Select camera	The camera tile is highlighted on the layout.
   Zoom in camera	The camera tile is highlighted on the layout, the viewing tiles take tile takes up 98% of the screen.
   Zoom in and show map	The camera tile is highlighted on the layout, the viewing tiles take tile takes up 50% of the screen, the map under the tiles tile shows the camera.
   Go Switch to immersion mode	Immersive mode, the viewing tiles take tile takes up 50% of the screen.
   Go Switch to Archive Modearchive mode	The camera window is highlighted on the layout and it is in archive mode. If a group of cameras is specified, then a layout is created with all the cameras in archive mode.
   Mark camera	The camera is added and highlighted on the Selected cameras layout (see Creating special layouts)
   Unmark camera	The camera is deleted from the Selected cameras layout (see Creating special layouts)




3. Specify the number of the monitor on which the camera should be displayed (3).

4. Select the user roles, this command applies to for which this macro will be available (4).

This command uses the following algorithm:

...

The configuration of the View camera macro is complete.

...
