1. Focus the PTZ camera on any point.
   To change the lens orientation, left-click the frame and, while holding the mouse button, drag the pointer in the relevant direction.

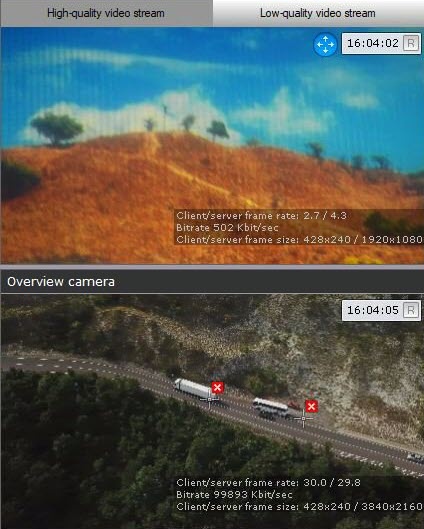

2. Left-click to add a point in the frame of the panoramic camera toward which the PTZ camera is currently oriented.
   Image Modified


   Note
   title Attention!
   Set calibration points on the same plane (floor, ground). Do not set the points on different planes (for example, when some are on the ground while others are on a tree, etc.).




   Note
   title Attention!
   The entirety of the moving object must be inside the field of view of the PTZ camera.




3. Repeat this process for at least six points.
4. Repeat the process for all panoramic cameras (click to select a panoramic camera in the list).
5. To save the calibration points, click the Apply button.

After setup is complete, we recommend that you perform a calibration check. To do this:

1. Click the Image Removed button Image Added button to the right of the preview for that PTZ camera.
2.  Click different points in the camera's field of view.  If If the PTZ camera is positioned correctly, it needs no calibration.
