Note
titleAttention!

Install MX-V5.2.6.7 (2020-06-16) or later firmware.

For detailed configuration via the web interface, refer to manufacturer's instructions.

Before starting Axxon One, please configure the camera via the web interface:

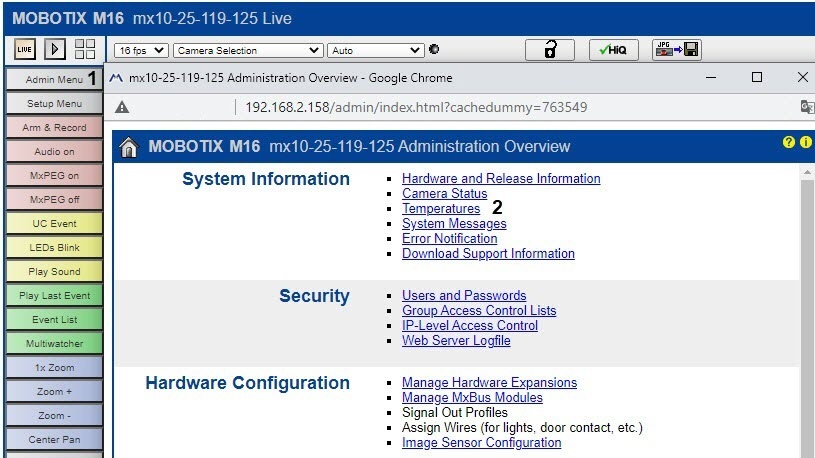

  1. Proceed to admin menu (1), and select Temperatures (2).
    Image Modified

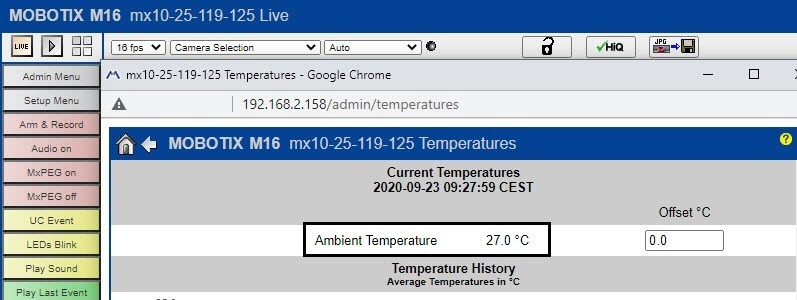

  2. Measure environmental temperature.
    Image Modified

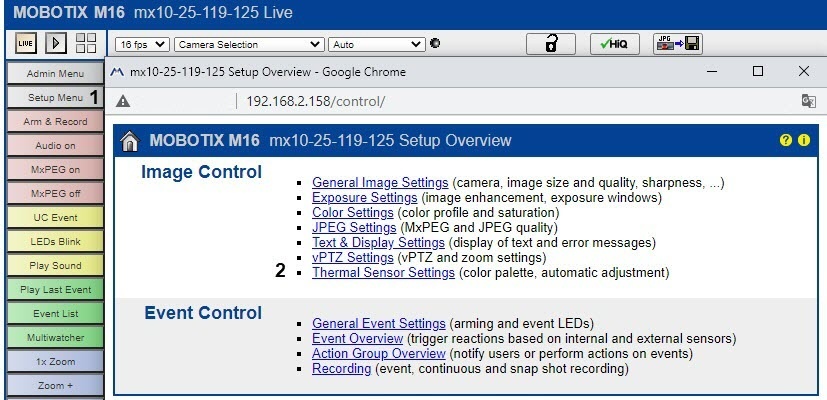

  3. Select Setup Menu (1), and then Thermal Sensor Settings (2).
    Image Modified

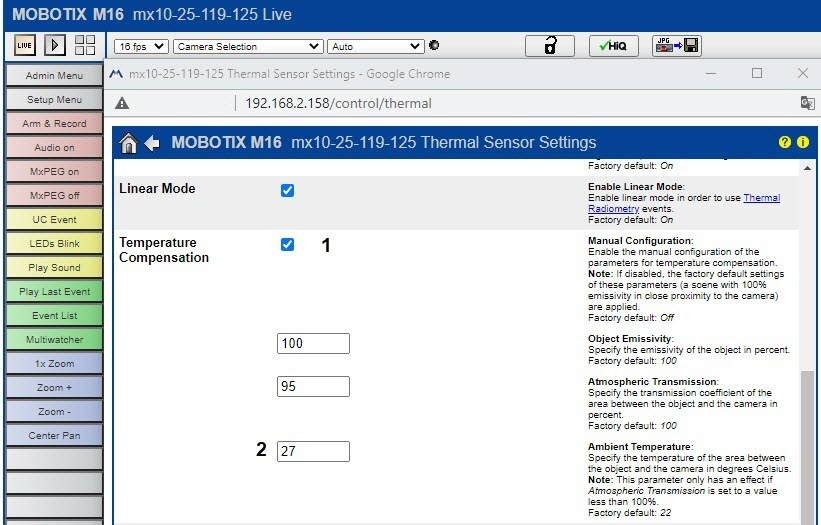

  4. Select the Temperature Compensation checkbox (1).
    Image Modified
  5. Enter the environmental temperature value (2, see point 2).

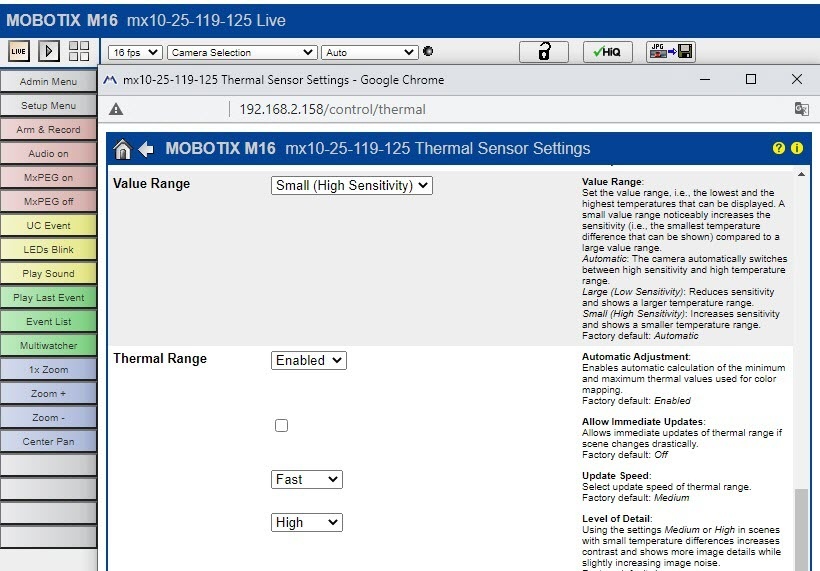

  6. Specify the Value Range и  and Thermal Range parameters as shown on the screenshot.
    Image Modified

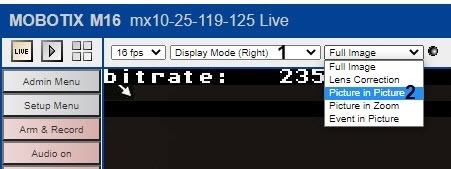

  7. To caption video with temperature readings, select  Display Display Mode (Right) (1), and then Picture in Picture (2) checkboxes.
    Image Modified
  8. Save the settings.
