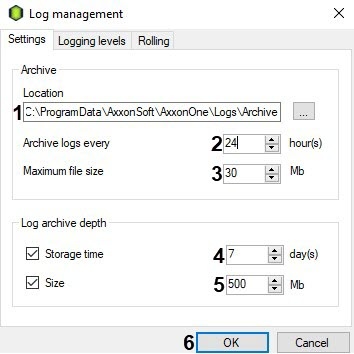

1. In the Archive location field (1), enter the complete path to the directory to which the event logs should be moved after archiving.

   Info
   title Note
   To set the path using standard Windows methods, click Image Added.

   Image Modified

   Image Removed

2. In the Archive logs every...hours field (2), enter the interval for event log archiving, in hours.
3. Set the maximum size of the file in megabytes (3). When the specified size is reached, a new file is created.
4. In the Log archive depth group, set the following parameters:

   1. In the Storage time field (34), indicate the maximum retention time in days of a log in the archive, after which the log is deleted.
   2. In the Size field (45), indicate the maximum size of the archive, above which the oldest logs are deleted from the archive.

   Info
   title Note
   Archive disk space restrictions take priority over log retention time restrictions. For example, the oldest logs will be automatically deleted even if their retention time has not expired, if the archive size has exceeded the maximum value.




   Info
   title Note
   If it is not necessary to impose any limitations on log retention period and/or size, clear the corresponding check boxes in the Log archive depth (34-45).




5. Click OK (56) to save changes.

Configuration of the log archive is now complete.
