Statistics Boards display information on the number of events of the selected type or types, as a number and graph.

...

1. Add an information board to the layout (see Adding information boards to cells).

2. In the upper-right corner, click the Image Removed button Image Added button.

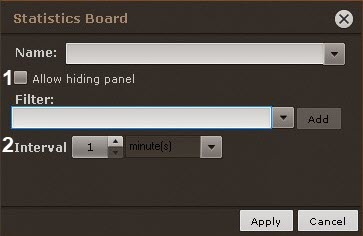

3. To allow operators to hide the information board from a layout, select the Allow hiding panel check box (1).
   Image RemovedImage Added

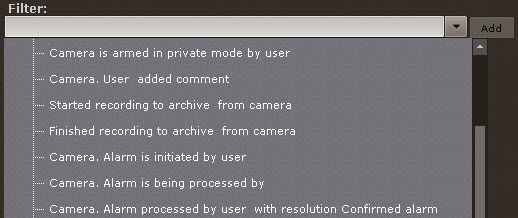

4. Select the event types that you want to be counted and click Add.
   Image Modified
   To add events of the same type from different devices, enter the name of the event in the Filter field. This will list only the events of the chosen type. To list all events, clear the filter field.

   Info
   title Note
   To remove an added event type, click the  button.

   If no event type is selected, all system events are counted.

5. Select the time period for display of statistics on the graph (2).
6. Click Apply to save the changes (3).

Configuration of the Statistics Board is complete.
