Events Event Boards display information about selected system events. Configuration of the events to display is performed in the corresponding section.

Events on the board can be displayed in three ways, chosen via the buttons in the upper-left corner of the board:

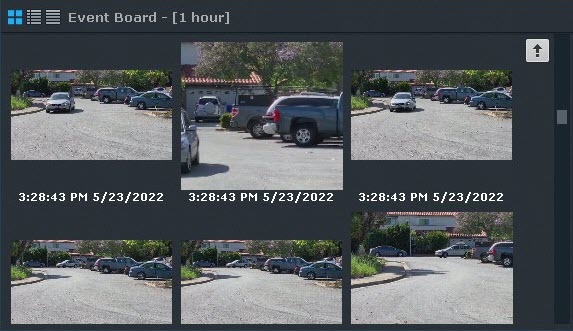

1. First frame of events and their time:
   Image Modified

   Info
   title Note
   The frame is not displayed when there is no recording in the archive.

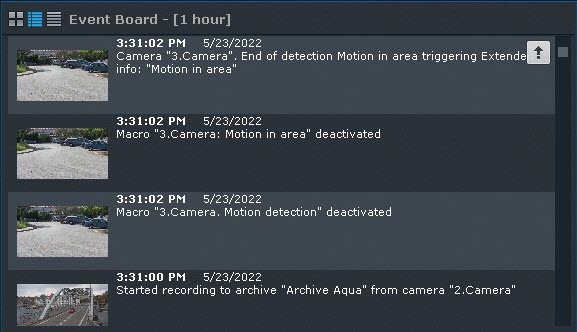

2. First frame of events and text:
   Image Modified

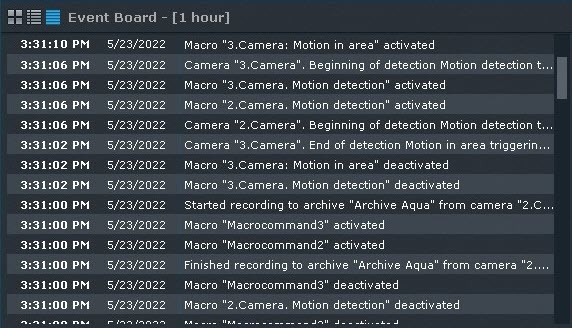

3. Text only:
   Image Modified

When a layout is switched to, by default the Events Event Board is displayed as configured in the settings.

At the top of the list are the most recent events. If you are at the end of the list, you can use the  button button in the panel's top-right corner to go to the most recent events. New events are highlighted for 4 seconds. The panel may include up to 100 events.   If the number of events exceeds the maximum permitted value, the newer events will be displayed in place of older ones.

...
