1. Drag the video camera's icon to the place on the map that represents the camera's actual location at the site (1).


2. On the map, use the corner nodes to adjust the video camera's field of view to match the actual situation at the site (2).

   Note
   title Important!

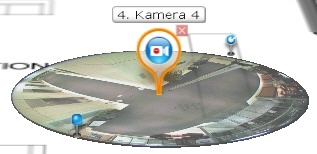

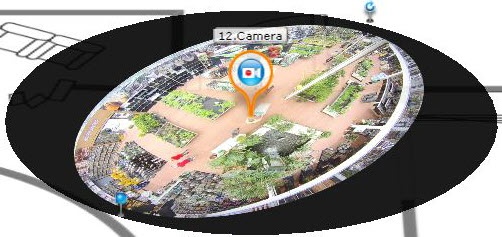

   For ceiling-mounted fisheye cameras (see Configuring fisheye fish-eye cameras), you are advised to set a 360° field of view. If you do so, the video from the camera will be directly available in the specified area: Image RemovedImage Added To enable this feature on cameras with ImmerVision lenses, PTZ display mode must be chosen (see Configuring fisheye fish-eye cameras).




3. Configure the area for video display:

   Note
   title Important!
   The video display area is not available for ceiling-mounted fisheye cameras.




• using Using the points at the base (3), set the size of the area (left-click and drag the cursor).

• using Using a third point (4) to change the tilt of the area.

  Info
  title Note
  You can switch map display to flat while working with the Map (see Customizing an Interactive Map).




• using Using the slider in the lower-right corner to set the default transparency of the area.


Configuration of the camera in standard map viewing mode is complete.
