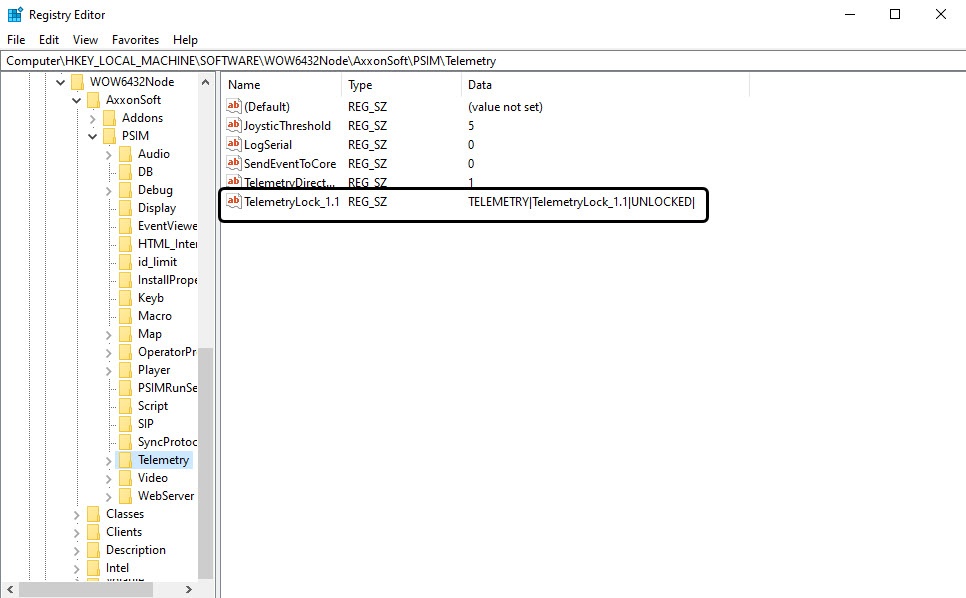

1. Open the TELEMETRY folder of the HKEY_LOCAL_MACHINE -> SOFTWARE -> ITV  AxxonSoft -> Intellect  Axxon PSIM registry branch (HKEY_LOCAL_MACHINE -> SOFTWARE -> Wow6432Node-> ITV  AxxonSoft -> Intellect  Axxon PSIM for 64-bit system).
2. Add a string parameter to the TELEMETRY folder.

3. Assign the name to the string parameter, identical to the number of the joystick button in the Windows OS.





   Info
   title Note.
   To define the numbers of the joystick buttons in the Windows OS, use the Game devices application.

4. Assign the value to the string  parameter, identical to the name of the command executed by the PTZ device in INTELLECT™ Axxon PSIM™ (the value is to be entered in uppercase). Available commands in  INTELLECT™ Axxon PSIM™ are listed in the table below:

...
