To read the Digiplex EVO system configuration from the EVO control panel, do the following in the ACFA IntellectPSIM Software System:

1. Go to the Paradox SFA/ACS object's settings panel.


   Note
   title Attention!
   The settings for the connection between the Intellect Server and the EVO control panel must be provided (see Configuration of the connection between the Intellect Server and the EVO control panel section).

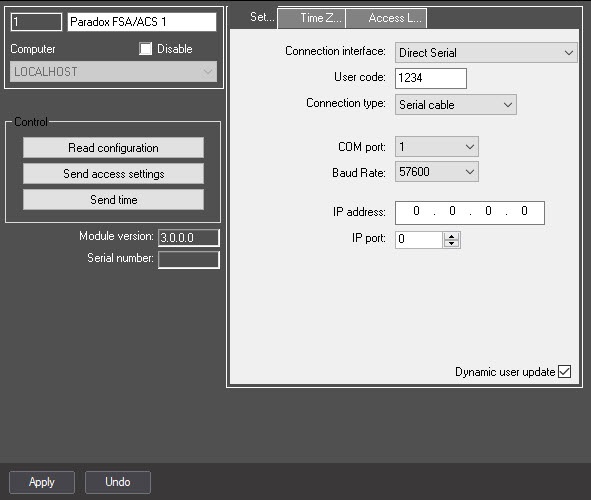

2. Click Read configuration button (1).
3. The operation will update the following components:

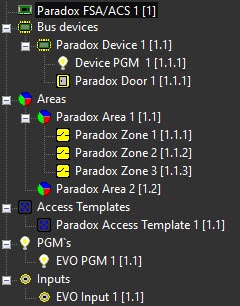

   1. Paradox module's object tree;

   2. access parameters stored in the ACFA IntellectPSIM Software System (e.g. users and time schedules).


...

Reading the Digiplex EVO system configuration from the EVO control panel to the ACFA IntellectPSIM software is completed.
