The RISCO FSA is connected to ACFA IntellectPSIM as follows:

1. Create a RISCO object based on the Computer object on the Hardware tab of the System Settings dialog box.

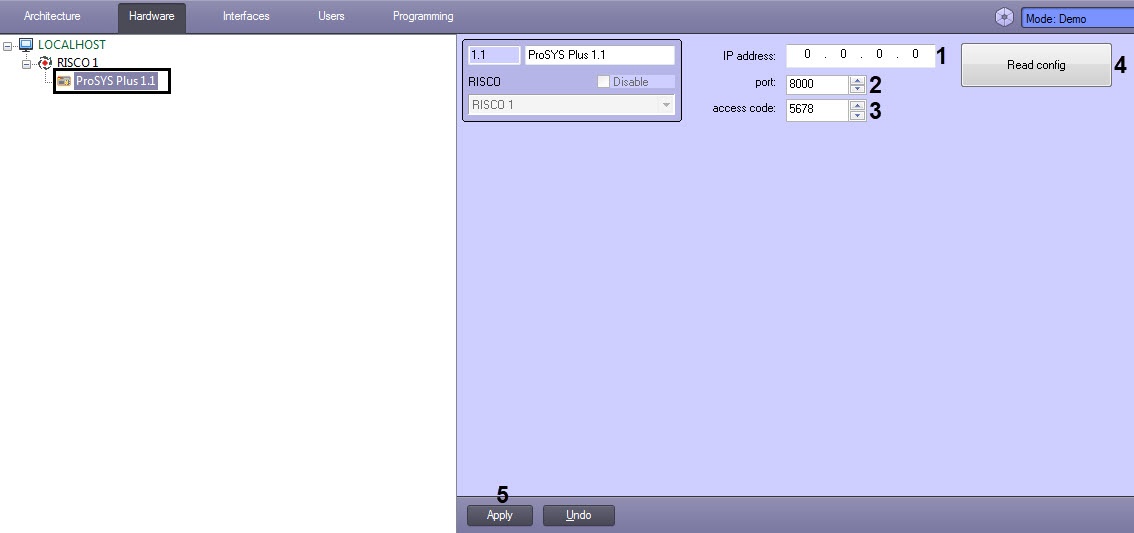

2. Go to the settings panel of the ProSYS Plus object, which is created on the basis of the RISCO object.

3. In the IP address field (1) enter the IP address of the RISCO ProSYS Plus main board.
4. In the port field (2), enter the connection port of the RISCO ProSYS Plus main board.
5. In the access code field (3) enter the access code for the RISCO ProSYS Plus main board.

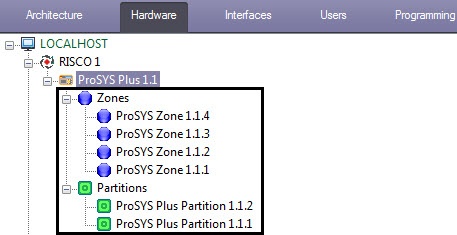

6. Click the Read config button (4) to read the configuration of the main board and build the corresponding zones and partitions in the object tree.

7. Click the Apply button (5) to save the settings.

Connection of the RISCO FSA to ACFA IntellectPSIM is now complete.
