The Post-alarm record mode is the record mode for recording post-alarm events that keeps recording for a specified period of time after recording an alarm event occurs.

By default, post-alarm recording is disabled. To enable the post-alarm recording, do the following:

  1. Go to the Hardware tab in the System settings dialog box (1) window.
  2. Select In the Hardware tab, select the Camera object corresponding to the required adjusted camera in the objects object tree (2). The settings panel for the selected object is displayed on the right of the Hardware tab.
  3. Go to the Basic settings tab on the settings panel of the Camera object (3).

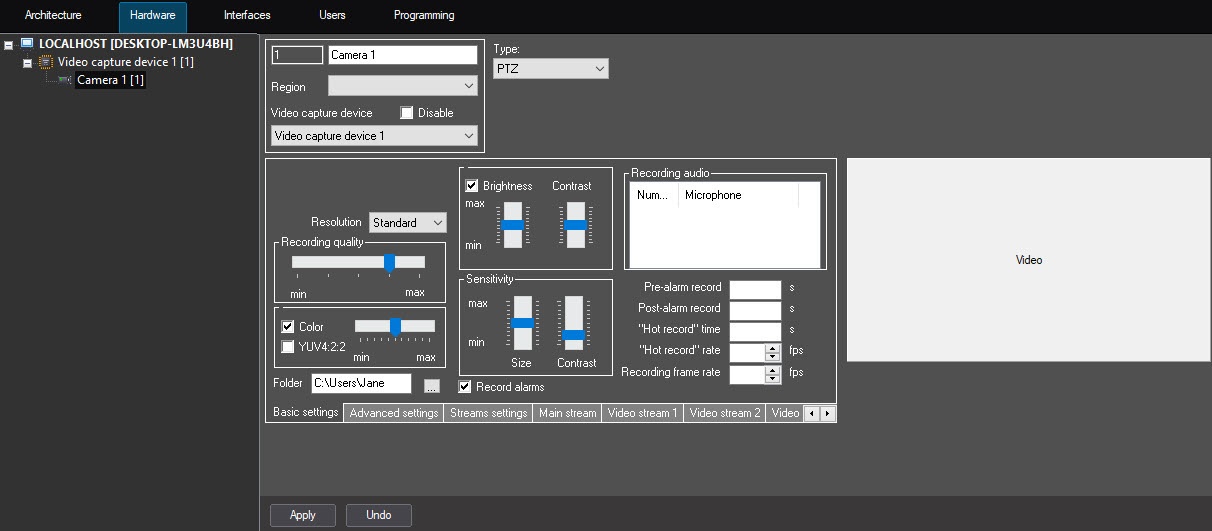

    Image Modified
  4. In the Post-alarm record field, specify the required time interval (sec) of post-alarm events recording (4)during which the recording continues after an alarm event occurs.
  5. Click the Apply button (5).

Configuring video in the post-alarm record mode is complete.
