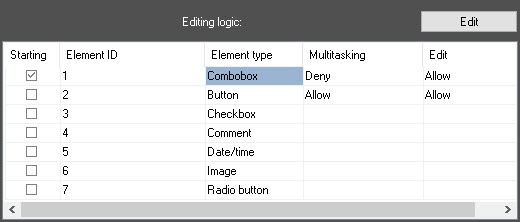

1. On the Logic tab, select the required element in the table and click the Edit button.
   Image Modified

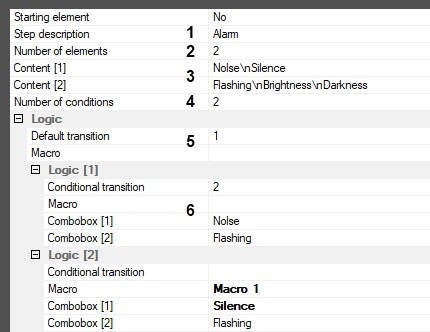

2. If necessary, in the Step description field (1), enter the text that will be displayed in the column to the left opposite next to the element.
   Image Modified

3. From the Number of elements list (2), select the required number of drop-down lists.

   Info
   title Note
   The maximum number of elements is determined by the possible number of columns when displaying you display the logic (see Configuring the display of logic).

4. In the Content fields (3), click the Image Removed button the Image Added button and enter the values ​​of each list. Each value should be entered on a ​​for the lists. Enter each value on the new line.
   Image RemovedImage Added
   To save the values and close this window, click .
5. From the Number of conditions list (4), select the number of different logics used for to proceed the event handling. In this case, each logic implies a set of values ​​that the operator selected from the lists. For each such set of values, it is possible to you can set the next element to display.
6. If it is necessary you want to display the same element for at any selected values, then set up this element in the Logic group (5). If you use several logics are used, then set up each logic settings in the Logic [N] group (6), where N is the logic number. Do To set it up, do the following:
   1. In the Conditional transition field, select the element that should must be displayed next.
   2. If at the same time it is necessary you also want to execute a macro command, select it from the the Macro list.
   3. Select values ​​from the lists at which the above actions will be performed.
7. Click the OK button.

Example of displaying the Combobox element:

Image Added

Configuring the Combobox element is complete.Image Removed
