 Example of Board settings for Realtek standard sound cards:

Image Modified

A.at single standard sound card registration

 Image Modified

B. at registration of two standard sound cards of the same type

To register the microphones, connected to the standard sound card input audio channels, create Microphone objects on the base of the Audio card object. Up to 2 Microphone objects may be placedn the base of a single Audio card object. The relevant hardware tree segment during the registration of the standard sound card and 2 microphones is shown in the figure.

Image RemovedImage Added

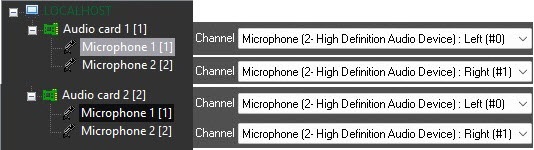

After the sound card registration in the Axxon PSIM™ system, the values should be assigned to the Channel settings of the Microphone objects, according to the channel numbers of the microphone connections to a standard sound card.

...

Mini jack 2xRCA adapter numbering layout:

Image Modified

A.for a single standard sound card

 Image Modified

B. for two standard sound cards

...
