1. Open the Properties panel for the required object (see Editing object properties using the Properties panel).

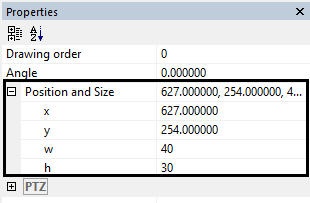

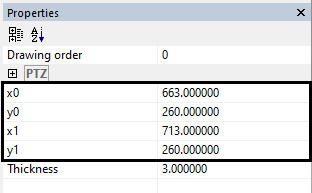

2. Expand the Position and Size settings group. For the Line icon type, specify the coordinates of the initial point (x0, y0) and end point (x1, y1) of the line in this group.

3. For other icons, specify the coordinates of the upper left corner (x, y), width (w) and height (h).

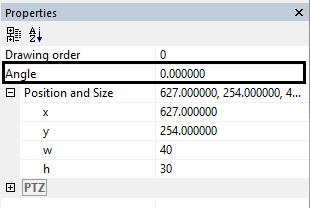

4. To rotate the icon, specify the required rotation angle in degrees in the Angle field.


...

1. Select the object for which it is necessary to display the viewing angle. As a result, the object name will be highlighted with a border of green dots.

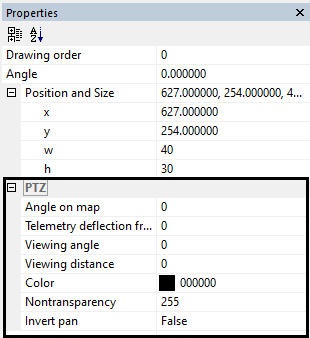

2. Open the Properties panel for the required object (see Editing object properties using the Properties panel) and expand the PTZ settings group.

3. Set the required field values:
   1. Angle on map — the direction of the display vector on the map. A value of 0 is the actual position of the camera at the time of setting the parameters.
   2. Telemetry deflection from zero — the actual offset of the camera.
   3. Viewing angle — the angle of the view display vector.
   4. Viewing distance — the size of the the view display vector.
   5. Color — the color of the view display vector.
   6. Nontransparency — the transparency of the view display vector.
   7. Invert pan — select True in the drop-down list if it is necessary to invert the camera rotation.

...

1. Open the Properties panel of the required object object (see Editing object properties using the Properties panel).

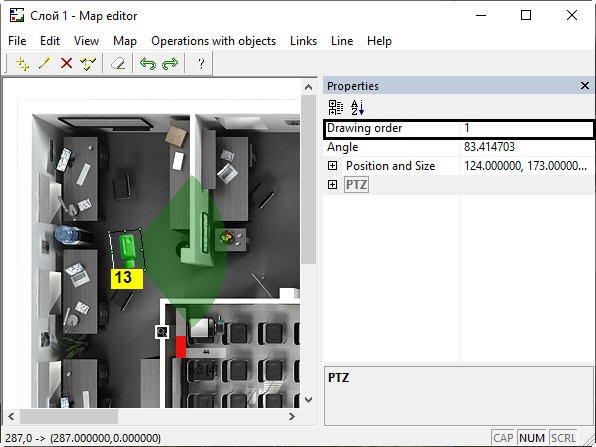

2. Set the value of the Drawing order parameter. Icons with bigger value of this parameter will be displayed over icons with smaller value.

...
