1. Perform the following settings of the IP-device:
   1. Go to the IP device web interface (see How to call the Web Server home page of IP device).
   2. Enter your login and password.

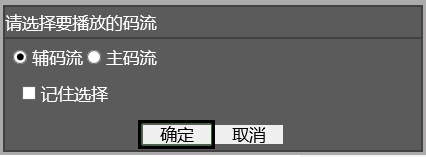

   3. Click 确定 (Confirm) in the dialog box opened.

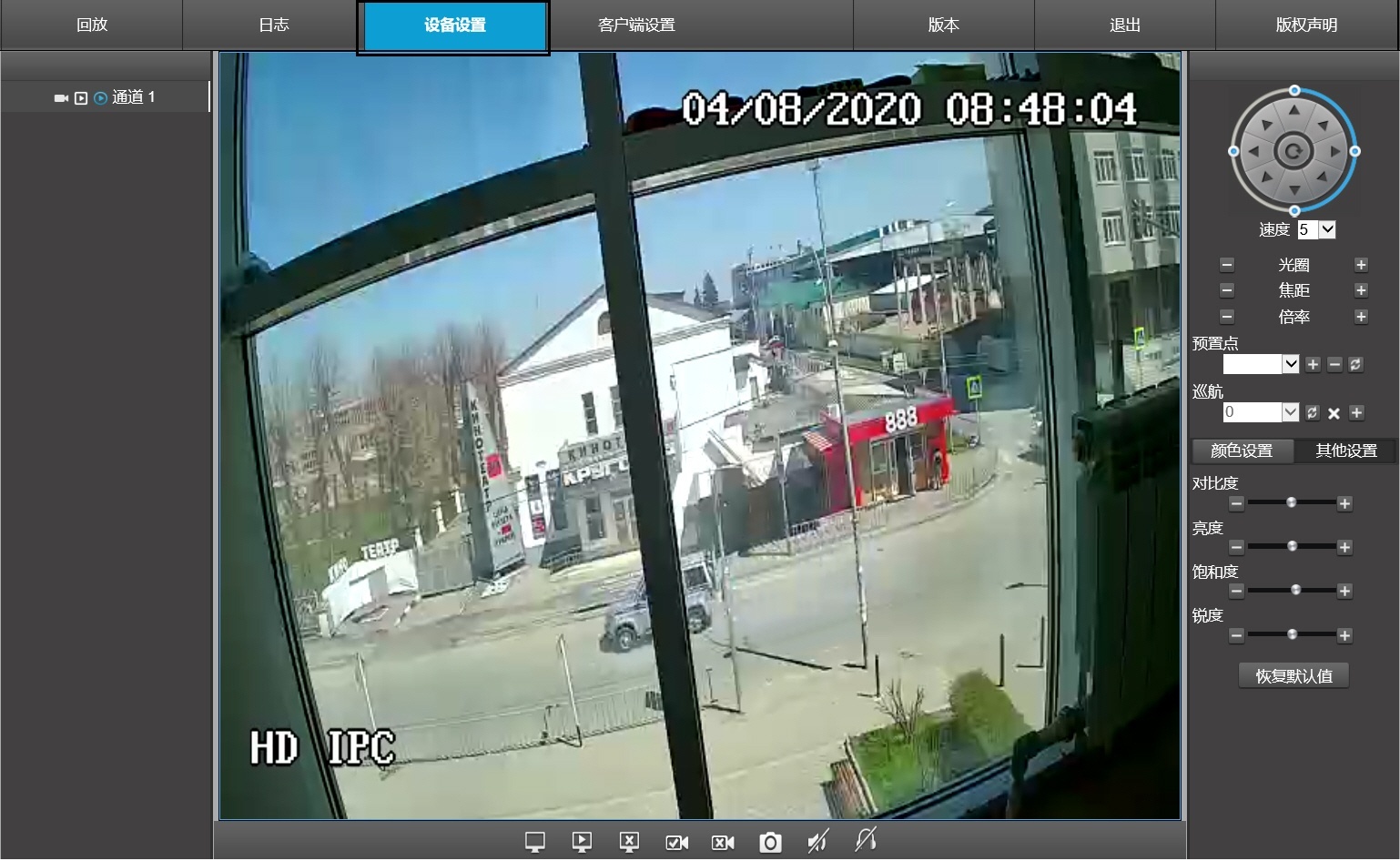

   4. Click 设备设置 (Device settings).

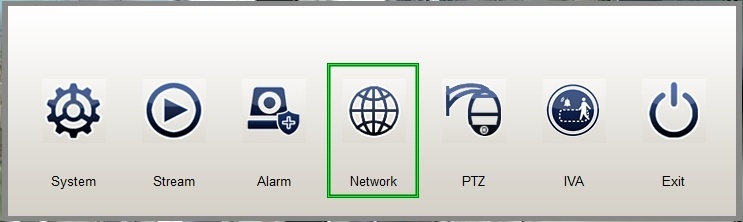

   5. Select Network in the dialog box.

   6. In the Network Management window, click GB28181.

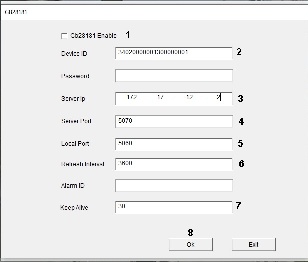

   7. The GB28181 window opens.

   8. Set the Gb28181 Enable checkbox checked (1).
   9. In the Device ID field, enter the device identification number as described in Connecting cameras via the GB/T28181 protocol (2). Example on the picture shows Device ID 34020000001300000001.
   10. In the Server Ip field, enter the Intellect server IP-address (3). The example shows IP 179.17.12.2
   11. In the Server Port field, enter Intellect server port number assigned for receiving messages from the IP device (4) The example shows port 5070.
   12. In the Local Port field, enter the IP device SIP port number (5).
   13. In the Refresh Interval field, enter the devise discovery period in seconds (6). The value shall not be less than 600.
   14. In the Keep Alive field, enter the period in seconds for sending messages confirming the device activity (7).
   15. Click the Ok button (8).
2. Use the following settings for the Video capture device object in Intellect:
   1. Select GBT28181 from the Type drop-down list.
   2. Example value for the IP address field: 34020000001300000001@34020000001300000002-10.0.40.246/179.17.12.2
      The Server ID 34020000001300000002 is not set on the Jovision device, so any Server ID can be chosen as per the conditions set in Connecting cameras via the GB/T28181 protocol.
   3. Set Port to 5070.
