1. Run IP Device Discovery Wizard (see Adding and removing IP devices).
2. In the field for manually adding an IP device, select  Commax in the Vendor drop-down list (1).

3. Select  generic in the Model list (2).
4. Enter the IP address of the CommaxComplexServer (3).
5. Click the button Image Removed Image Added.

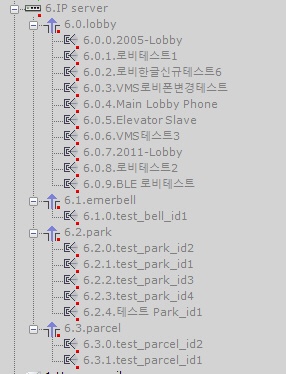

   The parent IP Server object and Channel and Input objects under it are added according to CommaxComplexServer configuration. The names of the Input objects in the VMS and CommaxComplexServer are the same.

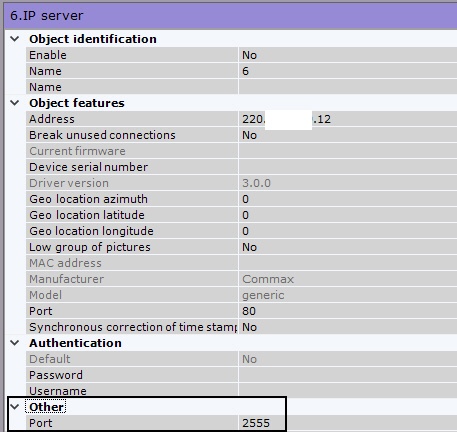

6. Select the IP Server object.
7. Enter the destination port name for CommaxComplexServer events.

8. Click Apply.

...
