Intellect has the possibility of transmitting the audio signals from microphones to IP devices and of playing back the audio signals with loudspeakers or headphones connected to IP devices.

There are two ways audio signals can be transmitted to IP devices in Intellect:

1. with the help of using the Audio player interface object;
2. with the help of using the Voice notification service system object.

...

To set up the transmission of audio signals with the help of using the Audio player object, do the following:

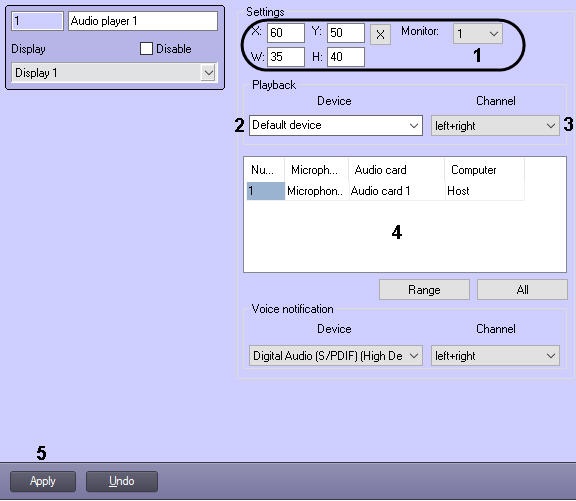

1. Go to the Audio player interface object settings panel.

2. Set the coordinates and the size of the Audio player interface window, as well as the number of the physical monitor on which the window will be displayed (1).

3. From the dropdown Device drop-down list, select the required IP device (2).

4. From the dropdown the Channel drop-down list, select the required audio signals playback channel (3).
5. From the dropdown drop-down list in the Number column, select the Microphone object number, from which the audio signal has to be transmitted to the selected IP device (4). Other columns of the table will fill be filled in automatically.
6. Repeat step 5 for each required Microphone objects.
7. Click the Apply button to save the changes (5).

Set Setting up the transmission of the audio signals with the help ofusingthe Audio player object is completed.

...
