To ensure the correct HUAWEI recognition module operation, it is necessary to configure the Camera mapping. It allows establishing a correspondence between the Intellect cameras and the YITU service, on which the faces are recognized (see Configuring the HUAWEI face recognition module).

The configure the Camera mapping, do the following:

  1. Go to the <Intellect installation directory>\Modules64\FaceCloud\Huawei\ path.
  2. Open the HuaweiClient.json file for editing.

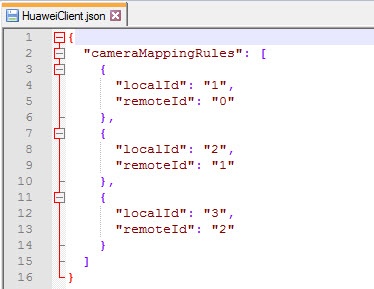

  3. For each camera that requires the face recognition, do the following:
    1. In the "localId" parameter specify the Camera identification number (id) in the Intellect software package.
    2. In the "remoteId" parameter specify the identification number (id) of the YITU service object, which receives the rtsp stream from the Intellect Camera.
    Image RemovedImage Added
  4. Save the changes in the HuaweiClient.json file.

...
