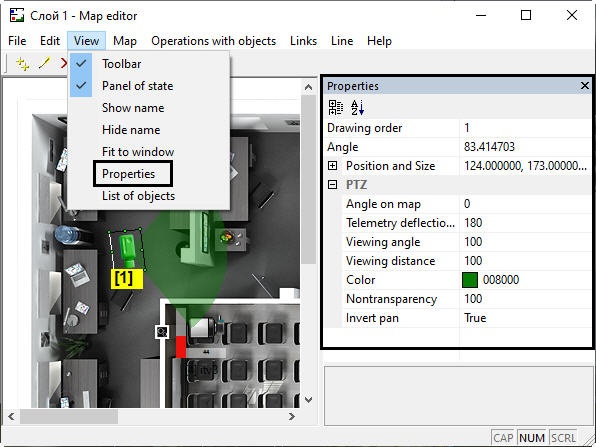

The Properties panel is displayed on the right side of the Map editor utility dialog box when the you select View -> Properties is selected.

This panel can also be opened by selecting the Properties item in the context menu of any object.

When selecting the an object on the layer of the interactive map, the list of the object parameters is displayed on the Properties panel. These parameters can also be also edited with the help of this panel.

For instance, example, using this panel, you can set the color and the font of the object caption, as well as the color and other parameters of the object icon ( in the form of polygon) can be set using this panel.

When selecting an object on the Properties panel, you can control the display of this object parameter list by using the following buttons:

Image Added — expands the object parameters tree.

Image Added — sorts the parameters in alphabetical order.

To edit the display parameters of displaying several objects' similar object icons simultaneously, select required icons by holding CTRL and left-clicking them. Then change parameters as usual.  the icons with the left mouse button while holding down the Ctrl key on the keyboard. Further editing of the parameters is performed in the same way as for a single object.

If several different objects' object icons are selected (for instanceexample, image and line, or polygon and text), then group changing editing of their properties is not available.
