  1. Create a macro (see Create Macros).

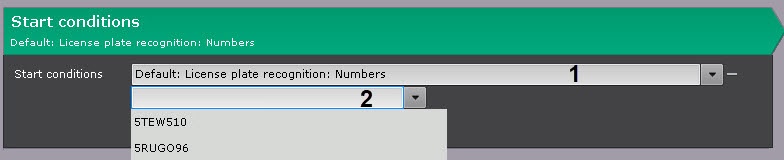

  2. As a starting condition, select the License plate recognition event and the desired list (1, see Configuring filters for event-driven macros).

  3. By default, the macro is triggered by recognition of any number from the list. If required, you can specify a particular number whose recognition will trigger the macro (2).

    Info
    titleNote

    To select another number, clear the 2 field and re-open the list.


  4. Program an action or a sequence of actions to be performed in response to an identification of a recognized LP against the designated list (see Settings specific to actions).
  5. If the response involves initiating an alarm, you can configure the Dialog Board to filter Alarm Initiated by Macro Command events (see Configure Configuring the Dialog Board).
