  1. From the Start menu.
    • To configure the SDK templates for version 3.5, click Start menu -> → Axxon PSIM -> → Utilities ->  → Uragan Pattern Configurator 3.5.
    • To configure the SDK templates for version 3.7, click Start menu -> → Axxon PSIM -> → Utilities ->  → Uragan Pattern Configurator 3.7.
    • To configure the SDK templates for version 3.8, click Start menu → Axxon PSIM → Utilities → Uragan Pattern Configurator 3.8.
  2. From the Auto PSIM software installation  installation directory.
    • For SDK version 3.5: <Axxon PSIM installation directory>\Modules\UrmLpr\Auto_uragan\Bin\PatCfgr.exe
    • For SDK version 3.7: <Axxon PSIM installation directory>\Modules64\UrmLpr\Auto_uragan\UrmSDK<SDK version>\UrmSDK3.7\PatCfgr\Bin
    • For SDK version 3.8: <Axxon PSIM installation directory>\Modules64\UrmLpr\Auto_uragan\UrmSDK3.8\PatCfgr\Bin
      • \PatCfgr.exe

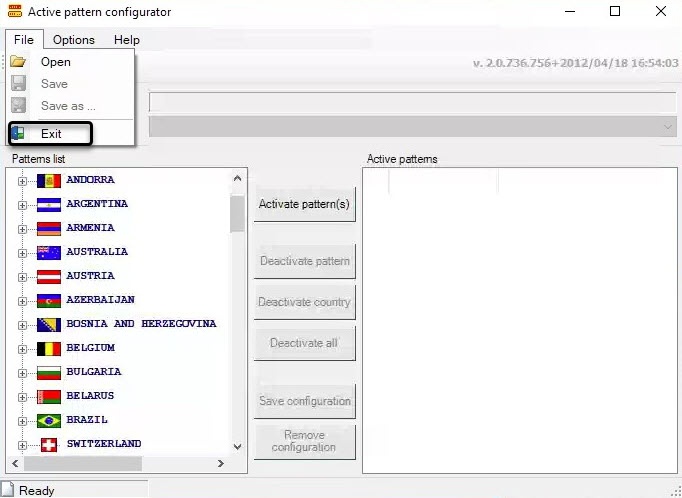

After starting you start the PatCfgr.exe utility, the Active pattern configurator window will openopens.

Image RemovedImage Added

Info
titleNote.

To change the interface language of the PatCfgr.exe utility interface, do the following:

  1. Select Language from the Settings menu.
    Image RemovedImage Added
  2. Select the needed required interface language.

Click the Image Removed button the Image Added button or select Exit from the File menu to close the PatCfgr.exe utility.
