In order to display a report the Report by number of open POS terminals, do the following:

1. Select a the Report by number number of open POS terminals in one way  (see Selecting a type of general POS PSIM report).

2. In order to set checkboxes checked in every item of the list click All, to set all checkboxes unchecked click None

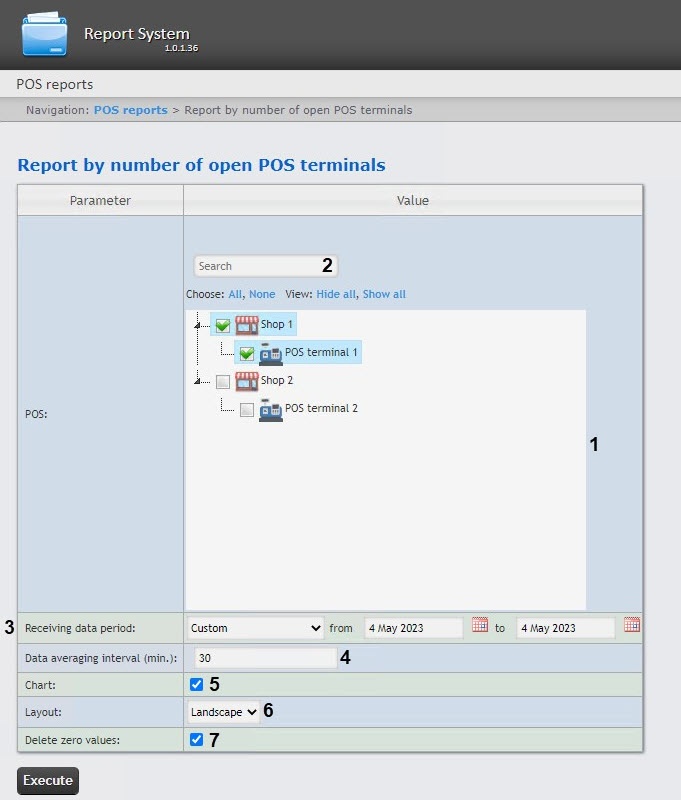

   Select the POS terminals (cash desks) by which it is necessary to display a report by setting the corresponding checkboxes checked in the list (1).

   Info

   title	Note

   Click All to select all available checkboxes. Click None to deselect all checkboxes (2).

   Infonote
   title Note
   In order to select all POS terminals in one shop set a checkbox for this shop. In order to delete all POS terminals of a shop from report do vice versa: set a checkbox unchecked for this shop.
   Attention!
   This field is mandatory: the report will not be generated if no value is selected. If you try to generate a report, a warning message will alert you that you should select at least one value from the list. The POS terminals that are not assigned to
   Info
   title Note
   POS terminals which do not related with the shop are not available in the list.




3. Specify the period in the following way:
   1. From the Receiving data period drop drop-down list, select the time period for which the report is to should be created (3).
   2. If the User period period is selected, enter the date of start and end periods for which the report is to should be created in the the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.
   3. If the User 2 period period is selected, enter additionally the time of start and end periods for which the report is to should be created using the the button.
   4. Other options are also available:

4. Specify the data averaging interval in minutes (4).
5. Set the Chart checkbox to display the report as a chart (5).
6. In the Layout drop drop-down list, select the report orientation (landscape or portrait) (6).
7. Set the Delete zero values checkbox in order not to not display the open POS terminals in the report if their number equals zero (7).
8. Click the Execute button to start the report generation (8).

As a result, a summary table or a chart will be displayed containing the number of open POS terminals in accordance with according to the specified parameters. In If the report is displayed as a chart, then the number of open POS terminals will be displayed along the vertical line, and the time corresponding to the number of open POS terminals will be displayed along the horizontal line.

...
