By default, the entire FoV is a scene Scene analytics detection tools zone. If you need to exclude parts of the scene prone to false alarms from detection (leaves, water, etc.), you should set exclude areas — zones – zone with scene Scene analytics detection tools and metadata generation disabled.

To do so, follow the steps:

1. Select the Object Tracker object and click the Image Modified button button.

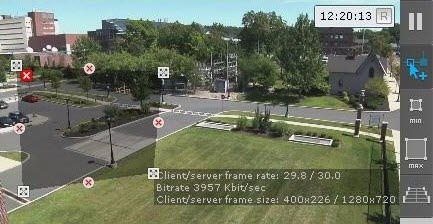

2. In the FoV, set the nodes of the closed area, in order, inside of which you want no detection.

   Image Modified

   Info
   title Note
   When the area is being constructed, the nodes are connected by a two-color dotted line which outlines the area's borders.




   Info
   title Note
   For your convenience, you can click the the Image Modified button button and configure the mask on a still frame/snapshot. To undo, click this button again.




   Action	Result
   Click in the viewing tile.	Creates a new area node
   Right-click on a created node.	Deletes the area node
   Position the cursor on a node and hold down the left mouse button while you move the mouse.	Moves the area node
   Click the Image Modified

    button

   button.

   Deletes the area

   Once the area is closed, you will see the Image Removed buttons Image Added buttons on the borderlines. If you click them, a new node is added. This allows you to be more flexible with zoning.

3. Set the required masking areas.

4. Click the Apply button.

You have successfully created the detection zone.

...
