To configure the perspective, do the following:

1. Select the Object Trackertracker object and click the  button.

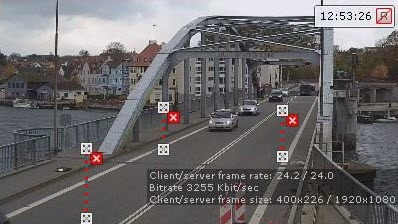

2. Set the size of the same object in different areas of the field of view. To create a calibration length, left-click within the video image in the viewing tile and add two anchor points. Set at least three calibration lengths. You can resize the length by stretching its anchor points . You can move it on screen by dragging and dropping.


   Info
   title Note
   For your convenience, you can click the button and configure the mask on a still frame/snapshot. To undo, click this button again.




   Info
   title Note
   To delete it, click the button.




3. Select Yes in the Object calibration option (1).


4. Enter the height in decimeters of the object you want to find in the Leveling rod height field (2).

   Note
   title Attention!
   Objects smaller than the specified value will not be detected.




5. Click the Apply button.

...
