To detect a sitting pose,   you should configure frame perspective first.

...

1. Select a detection tool, and click the Image Removed Image Added button in the preview window.

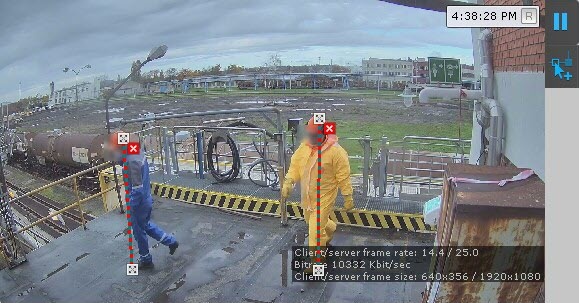

2. Set the size of the same person in different areas of the FOV. To create a leveling rod, left-click on the video image to add two anchor points. You should set at least three leveling rods. The size of the leveling rod should be about the average height of a person at this point in the frame. You can resize the rod by stretching its anchor pointsImage Removed Image Added. You can move can move it on screen by dragging and dropping.


   Note
   title Attention!
   When setting up the leveling rods, the following conditions should be met: the The rods that are located at the same distance from the video camera lens, should be of the same size;. the The feet of the rods should be located on the same surface (e.g. floor);. in In complex scenes, it is recommended to add more than three rods to increase the accuracy of the detection;. in In the parts of the frame where the lens vertical distortion is observed, the rods should be parallel to the nearest vertical objects (e.g. door, wardrobe).




   Note
   title Attention!
   For portrait-oriented scenes (such as corridor, shopping aisle, warehouse aisle, etc.), the arrangement of the rods should form triangles.




   Info
   title Note
   For your convenience, you can click the Image Removed Image Added button and configure the mask on a still frame. To undo, click this button again.




   Info
   title Note
   To delete the rod, click the Image Removed button Image Added button.




3. Click the Apply button.

Configuring the Sitting person detection tool is complete.
