It is possible to apply a privacy mask to the video image to hide certain parts of the frame:

• when viewing live videos;
• when viewing the archive;
• on exported videos and still frames.

The detection tools that support privacy mask:

• Configuring Face detection;
• Configuring Face detection (VL);
• Configuring Face Detection and Temperature Control;
• Configuring Masks Detection (detection of a medical or similar mask on the face);
• Person-based privacy masking configuration;
• Specific settings for People masking detection tool (based on data from pose detection tools).

...

To configure privacy mask, do the following:

1. Select the Video Camera object and click the button.



   Info
   title Note
   The button is inactive, if the text overlay button is active (see Putting a text over the camera window).




   Info
   title Note
   For your convenience, you can click the button and configure the mask on a still frame. To undo, click this button again.

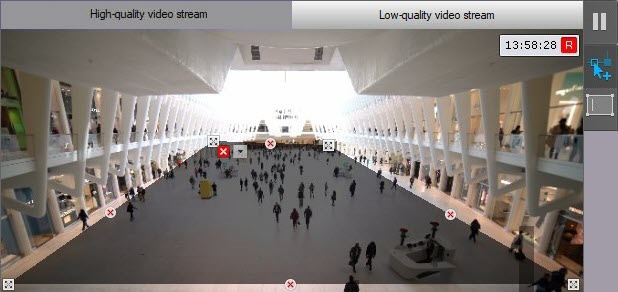

2. In the preview window, sequentially set the anchor points of the closed area that you want to hide when viewing the live video image.

   Image Modified

   Info
   title Note
   When the area is being constructed, the anchor points are connected by a two-color dotted line which outlines the area's borders.




   Action	Result
   Left or right click in the video surveillance window	Create a new anchor point in the area
   Right click on a created anchor point	Delete the area anchor point
   Point the cursor to an anchor point and holding the left mouse button, move the mouse	Move the area anchor point
   Click the Image Modified button	Delete the area

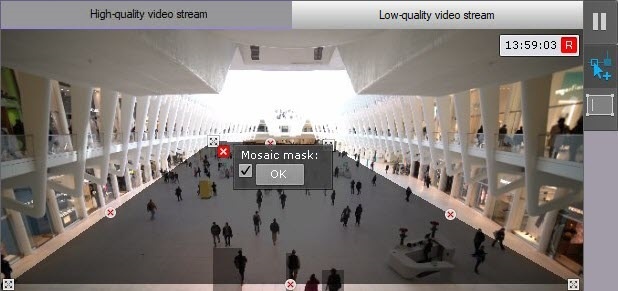

3. You can mask the selected area with black color (by default), or with a mosaic mask. To apply the mosaic mask, do the following:

   1. Click the button.

   2. Set the checkbox.

      Image Modified



   3. Click the OK button.

4. You can specify several areas.
5. Click the Apply button.

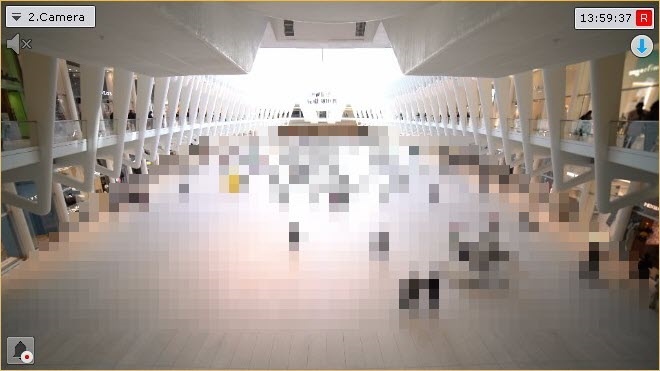

Privacy mask configuration is complete. When you view a video image from this camera, the selected area will be hidden.

Image Modified
