The Events filter component allows selecting the type of events that are displayed on the archive navigation panelArchive Navigation Panel.

To select an event type:

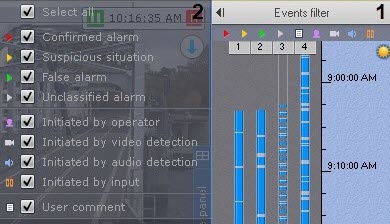

1. Click the Events filter button (1). The Events filter window will then be displayed (2).

2. Select the checkboxes for the types of alarms which should be displayed on the archive navigation panelArchive Navigation Panel, according to their status:

   1. Confirmed alarm.
   2. Suspicious situation.
   3. False alarm.

   4. Unclassified alarm.

      Info
      title Note.
      If you clear the checkbox for a certain type of alarm, this type of alarm and the corresponding track are no longer displayed on the timeline.




3. Select the checkboxes for the types of alarms which should be displayed on the archive navigation panelArchive Navigation Panel, according to the cause of their initiation:

   1. Initiated by operator.
   2. Initiated by video detection tool (basic , situation analysis, or embedded, including their sub-detection tools).
   3. Initiated by audio detection tool (basic, situation analysis, or embedded).

   4. Initiated by input.

   Info
   title Note.
   By default, all checkboxes are already selected.




   Note
   title Attention
   To display alarms on the timeline, select at least one type of alarm event and one initiator.




4. Select the checkbox to display operator comments.
5. Click the Apply button.

...

Events of the selected type are now displayed on the timeline (see the section titled The Timeline)  and and in the events list (see the section titled Events List).
